Product Details

Description



Features:

• Fully Integrated PLL Circuit
• Integrated VCO and Reference Oscillator
• 2.4V to 5.0V Supply Voltage
• Low Current and Power Down Capability
• 300MHz to 1000MHz Frequency Range
• Narrowband and Wideband FM


Application

• Local Oscillator Source
• FM/FSK Transmitter
• Wireless Data Transmitters
• 433/868/915MHz ISM Band Systems
• Low-Cost Single Frequency LO Source
• Wireless Security Systems

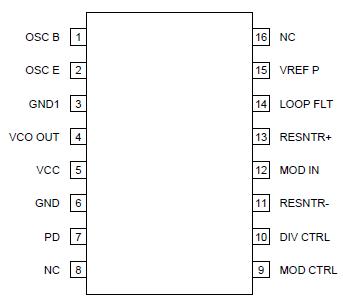

Pinout

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Voltage
-0.5 to +5.5
VDC
Power Down Voltage(VPD)
-0.5 to VCC
V
Operating Ambient Temperature
-40 to +85
Storage Temperature
-40 to +150



Description

The RF2510 is a monolithic integrated circuit intended for  use as a low-cost Frequency Synthesizer. The device is provided in a 16 pin SSOP package and is designed to provide a phased locked frequency source for use in local oscillator or transmitter applications. The chip can be used in FM or FSK applications in the U.S. 915MHz ISM band and European 433MHz and 868MHz ISM band. The integrated VCO, dual modulus/dual divide (128/129 or 64/65) pre-scaler, and reference oscillator require only the addition of an external crystal to provide a complete phase-locked oscillator.
