RF3375

Features: DC to >6000MHz OperationInternally Matched Input and Output13.2dB Small Signal Gain+28dBm Output IP3+16.0dBm Output P1dBApplicationBasestation ApplicationsBroadband, Low-Noise Gain BlocksF or RF Buffer AmplifiersDriver Stage for Power AmplifiersFinal PA for Low-Power ApplicationsHigh ...

product image

RF3375 Picture
See larger image
SeekIC No. : 004476383 Detail

RF3375: Features: DC to >6000MHz OperationInternally Matched Input and Output13.2dB Small Signal Gain+28dBm Output IP3+16.0dBm Output P1dBApplicationBasestation ApplicationsBroadband, Low-Noise Gain Bloc...

RF3375 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF3375
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

DC to >6000MHz Operation
Internally Matched Input and Output
13.2dB Small Signal Gain
+28dBm Output IP3
+16.0dBm Output P1dB




Application

Basestation Applications
Broadband, Low-Noise Gain Blocks
F or RF Buffer Amplifiers
Driver Stage for Power Amplifiers
Final PA for Low-Power Applications
High Reliability Applications





Pinout

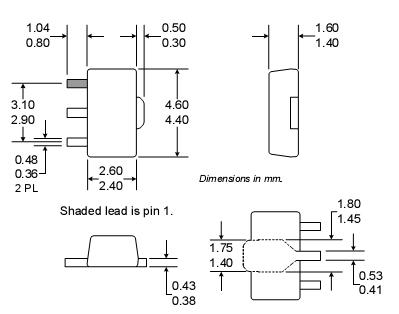

Connection Diagram




Specifications

Frequency (MHz) DC to 6000
Gain (dB) 13.2 at 2000
NF (dB) 4.5
OP1dB (dBm) 16.0
OIP3 (dBm) +29
Vd (V) 5.2
Vcc (V) 6.6
Icc (mA) 65
Package/Size (Dim in mm) SOT-89


Parameter

Rating

Unit

Input RF Power
Operating Ambient Temperature
Storage Temperature
ICC

+13
-40 to +85
-60 to +150
80

dBm
°C
°C
mA






Description

The RF3375 is a general purpose, low-cost RF amplifier IC. The device RF3375 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) pro-cess, and has been designed for use as an easily-cas-cadable 50 gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 6000MHz.

The device RF3375 is self-contained with 50? input and output impedances and requires only two external DC-biasing elements to operate as specified.
