Features:

• 3.5% EVM @ POUT = +19 dBm with IEEE
   802.11a 64 QAM OFDM at 54 Mbps
• 24.5 dB of Linear Power Gain at 5 GHz
• Single +3.3 V Supply
• 3 mm x 3 mm x 0.9 mm LPCC
• < 1 dB Gain Variation From 4.9 - 5.9 GHz
• 25 dBm P1dB
• 170 mA @ POUT = +19 dBm
• RoHS Compliant
• MSL 1 Rating


Application

• 802.11a WLAN
• 5 GHz Wireless Video Distribution


Pinout

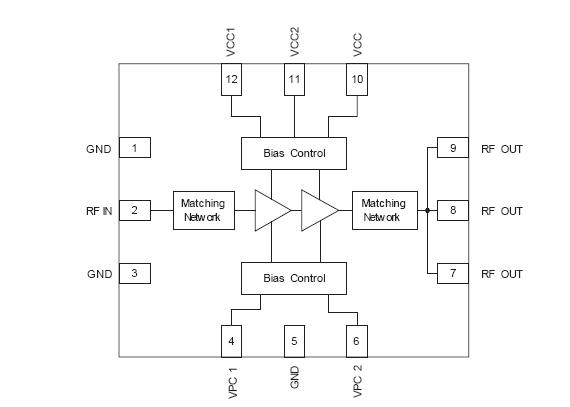

Connection Diagram


Specifications

PARAMETER MIN MAX UNIT COMMENTS
DC Power Supply (VCC, VCC1, VCC2) - +4.0 V
Power Control Level (VPC1, VPC2) - +4.0 V Applied to series resistors
external to VPC pins. No RF
signal applied.
DC Current Consumption - 700 mA
RF Input Level (RFIN) - 0 dBm
Operating Ambient Temperature -40 +85 °C
Storage Temperature -55 +150 °C



Description

The ANADIGICS RFS5032RS32P0 power amplifier is a high performance InGaP HBT power amplifier IC designed for transmit applications in the 4.9-5.9GHz bands. The PA exhibits unparalleled linearity and efficiency for IEEE 802.11a WLAN systems under the toughest signal configurations within these standards. The PA is biased by a single +3.3 V supply and consumes ultra-low current in the OFF mode.

Figure 1: Block Diagram and Pinout RFS5032RS32P0 is manufactured using advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. The IC is RoHS (Restrictions on Hazardous Substances) compliant, and is provided in a 3 mm x 3 mm x 0.9 mm LPCC package optimized for a 50 system.
