RH5VT09A-RF
-
Suppliers
DataSheet
General Description
RH5VT09A-RF Maximum Ratings
| Symbol | Item | Rating | Unit | |
| VDD | Supply Voltage | 12 | V | |
| VOUT | Output Voltage | CMOS | VSS0.3 to VDD+0.3 | V |
| Nch | VSS0.3 to 12 | |||
| IOUT | Output Current | 70 | mA | |
| PD1 | Power Dissipation 1 (NOTE1) | 300 | mW | |
| PD2 | Power Dissipation 2 (NOTE2) | 150 | mW | |
| TOPT | Operating Temperature Range | 30 to +80 | °C | |
| TSTG | Storage Temperature Range | 55 to +125 | °C | |
| Tsolder | Lead Temperature (Soldering) | 260°C,10s | ||
(NOTE 2) applied to SOT-23-5
RH5VT09A-RF Features
• Ultra-low Supply Current ............................TYP. 0.8A (VDD=1.5V)
• Broad Operating Voltage Range .................. 0.7V to 10.0V (Topt =25°C)
• Detector Threshold........................................Stepwise setting with a step of 0.1V in the range of 0.9V to 6.0V is possible (refer to Selection Guide).
• High Accuracy Detector Threshold..............±2.5%
• Low Temperature-Drift Coefficien of Detector Threshold..............TYP. ±100ppm/°C
• Two Output Types.........................................Nch Open Drain and CMOS
• Three Types of Packages ..............................TO-92, SOT-89 (Mini-power Mold), SOT-23-5 (Mini-mold)
• Broad Operating Voltage Range .................. 0.7V to 10.0V (Topt =25°C)
• Detector Threshold........................................Stepwise setting with a step of 0.1V in the range of 0.9V to 6.0V is possible (refer to Selection Guide).
• High Accuracy Detector Threshold..............±2.5%
• Low Temperature-Drift Coefficien of Detector Threshold..............TYP. ±100ppm/°C
• Two Output Types.........................................Nch Open Drain and CMOS
• Three Types of Packages ..............................TO-92, SOT-89 (Mini-power Mold), SOT-23-5 (Mini-mold)
RH5VT09A-RF Typical Application
• CPU & Logic Circuit Reset
• Battery Checker
• Window Comparator
• Wave Shaping Circuit
• Battery Back-Up Circuit
• Power Failure Detector
• Battery Checker
• Window Comparator
• Wave Shaping Circuit
• Battery Back-Up Circuit
• Power Failure Detector

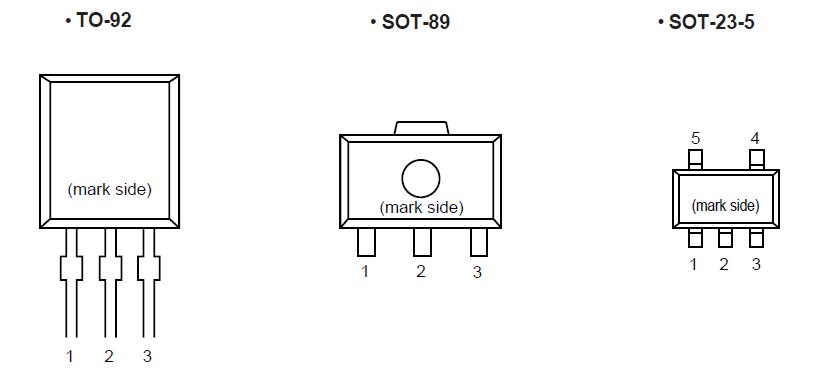

RH5VT09A-RF Connection Diagram
