Part Number: RMPA1852
Description: This 7 x 7mm PAM is a 50 , quad-band dual mode, GSM/ EDGE PA module for 2.75G radio applications. In E...
- Table of contents:
RMPA1852
-
Suppliers
DataSheet
General Description
RMPA1852 General Description
This 7 x 7mm PAM is a 50 , quad-band dual mode, GSM/ EDGE PA module for 2.75G radio applications. In EDGE mode, the module supports High/Low power mode feature to maximize efficiency in low power operation. The module provides 50 input and output terminals. The module also includes closed loop power control circuitry for GSM applications, minimizing the required external components and maximizing board yields.
RMPA1852 Maximum Ratings
| Parameter | Value | Units |
| Supply Voltage (Vcc) | 6 | V |
| Input Power | 12 | dBm |
| Control Voltage (Vramp) | 3.0 | V |
| TX EN | 3.0 | V |
| BAND SEL | 3.0 | V |
| Duty Cycle at Max Power | 50 | % |
| Operating Temperature | -30 to +85 | |
| Storage Temperature | -55 to +150 | |
| Junction Temperature | 150 |
RMPA1852 Features
`Quad band, GSM/EDGE PA module
`7.0 x 7.0 mm x 1.3 mm Package Size
`GSM Integrated Power Control Solution
`GSM High Efficiency 55% GSM, 50% DCS/PCS
`EDGE mode 29 dBm Output Power, 27% EDGE PAE
`Low current consumption for Pout<16 dBm in EDGE mode
`Shutdown/Standby Capability for Battery Operation
`50RF Inputs and Outputs

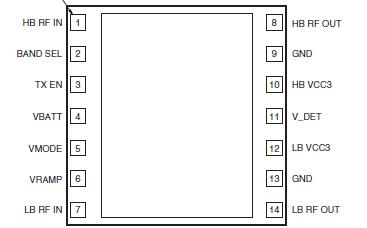

RMPA1852 Connection Diagram
RMPA1852
PDF/DataSheet Download
- Datasheet: RMPA1852
- File Size: 476019 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
