RN5VM111C

The RN5VM111C Series are protection ICs for over-charge/discharge of rechargeable one-cell Lithium-ion (Li+) batteries by
CMOS process.

The RN5VM111C Series can detect over-charge/discharge of Li+ one-cell and excess load current, further include a short circuit protector for preventing large external short circuit current. Each of these ICs is composed of three voltage detectors, a reference unit, a hysteresis circuit, and a short circuit protector.
When charging voltage crosses the detector threshold from a low value to a value higher than VDET1, the output of COUT pin, the output of over-charge detector/VD1, switches to low level, ..charger's negative pin level. After detecting overcharge the VD1 can be reset and the output of COUT pin becomes "H" when the VDD voltage is coming down to a level lower than "VDET1 - VHYS1", or when a charger is disconnected from the battery pack while the VDD level is in between "VDET1"and "VDET1 - VHYS1" in the RN5VM1**C version.

While in the RN5VM111C ´´D version after detecting over-charge, any load current can not be drawn from the battery pack when the VDD voltage stays over "VDET1 - VHYS1", excepting that the VD1 can be reset and it allows to draw load current when the VDD voltage is coming down to a level lower than "VDET1 - VHYS1" because of a cell internal discharging.

The output of DOUT pin, the output of over-discharge detector/VD2, switches to "L" after internally fixed delay time passed, when discharging voltage crosses the detector threshold from a high value to a value lower than VDET2. An excess load current can be sensed and cut off after internally fixed delay time passed through the built in excess current detector, VD3, with DOUT being enabled to low level. Once after detecting excess current, the VD3 is released and DOUT level switches to "H" by detaching a battery pack from a load system.

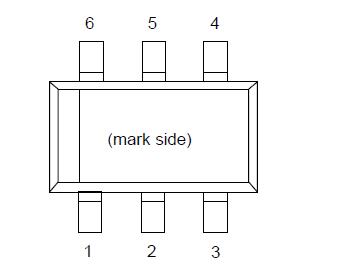

Further, short circuit protector makes DOUT level to "L" immediately with external short circuit current and removing external short circuit leads DOUT level to "H". After detecting over-discharge, supply current will be kept extremely "L" byhalting some internal circuits operation. The output delay of over-charge detectors can be set by connecting external capacitors.Output type of COUT and DOUT are CMOS. SOT23-6 is available.
