RPI-246

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Mounting Type: Through Hole
Package / Case: PCB Mount
Manufacturer: Rohm Semiconductor
Current - Collector (Ic) (Max): 30mA
Voltage - Collector Emitter Breakdown (Max): 30V
Current - DC Forward (If): 50mA
Response Time: 10µs, 10µs
Sensing Distance: 0.079" (2mm)
Packaging: Bulk


Features:

· Compact package based on the double-mold.
· Method High resolution (slit width = 0.2 mm).
· Gap between emitter and detector = 2.0 mm.


Application

·Floppy disk drives
·Movie equipment
·Cameras
·Printers


Specifications




Description

The RPI-246 is a compact, double-layer mold photointerrupter.

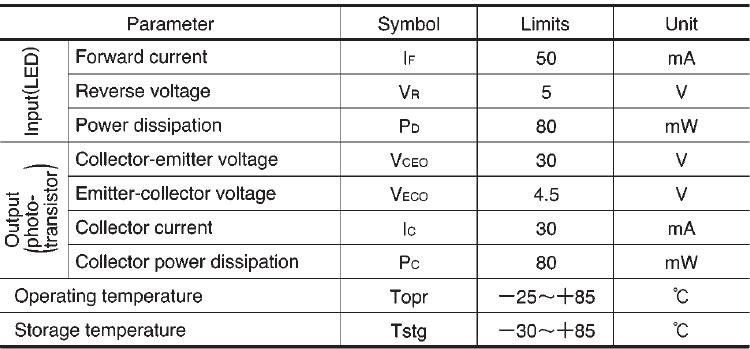

Parameters:

Technical/Catalog Information	RPI-246
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.079" (2mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 246 RPI246 511 1350 ND 5111350ND 511-1350
