RS-232

Accessory Type :
Color :
Equipment Type :
Product :


Features:

 Conforms to EIA/TIA-232-E (RS-232C) standard
+5 V single power source
Threshold select pin selecting two types of threshold voltages
Standby mode can be set by making standby pin high to reduce circuit current.
Three-state output configuration.  Both driver and receiver outputs go into high-impedance state in standby mode.

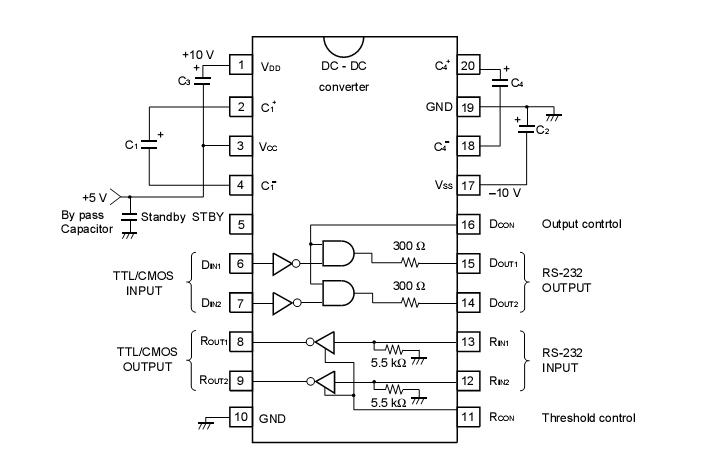

Pinout




Specifications

Parameter	Symbol	Ratings	Unit
voltage	VCC	0.5 to +6.0	V
nput voltage	DIN	0.5 to VCC +0.5	V
Receiver input voltage	RIN	30.0 to +30.0	V
Driver output voltage	DOUT	125.0 to +25.0Note	V
Receiver output voltage	ROUT	0.5 to VCC +0.5	V
Receiver input current	IIN	±60.0	mA
Operating temperature range	TA	40 to +85
Storage temperature range	Tstg	55 to +150
Power dissipation	PT	0.5	W

Description

The PD4711B is a high-voltage silicon gate CMOS line driver/reciever conforming to the EIA/TIA-232-E standard.It can operate with a single +5 V power source because it is provided with a DC-DC converter.  In addition, thislinedriver/receiver has many ancillary functions, including output control, threshold select, and standby functions.Because the PD4711B is provided with two output driver circuits and two receiver circuits, it can constitute an RS-232 interface circuit with a single chip.
