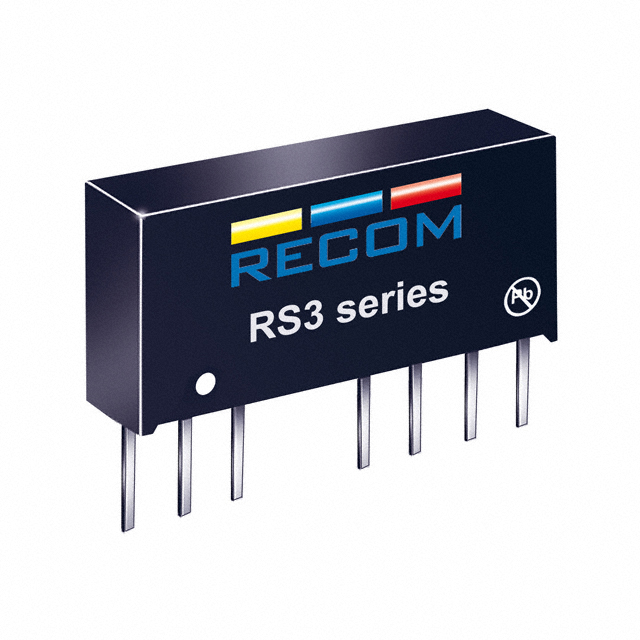

RS3-0509S

Output Current (Channel 1) :
Output Voltage (Channel 2) :
Output Current (Channel 2) :
Mounting Style :
Number of Outputs : 1
Product : Isolated
Output Power : 3 W
Input Voltage (nominal) : 5 V
Output Voltage (Channel 1) : 9 V
Input Voltage Range : 4.5 V to 9 V
Package / Case Size : SIP-8


Features:

2:1 Wide Range Voltage Input
1kVDC, 2kVDC & 3kVDC Isolation
UL94V-0 Package Material
Continuous Short Circuit Protection
Low Ripple and Noise
Remote On/Off Control
Efficiency to 80%


Description

RS3-0509S Very high power density, wide operating temperature range of -40°C~+71°C and extra features such as On/Off control are just some of the characteristics of this con-verter which is ideal for highly sophisticated industrial designs.

The RS3-0509S is available with isolation of 2kV or 3kV by choosing option "/H2" or "/H3"
