RS5C317B

Features: • Time keeping voltage 1.6V to 6.0V• Lowest supply current 0.6A TYP. (1.5A MAX.) at 3V• Connection to the CPU via only three pins: CE, SCLK/SCLK and SIO for addressing and data read/write• A clock counter (counting hours, minutes, and seconds) and a calendar count...

product image

RS5C317B Picture
See larger image
SeekIC No. : 004479229 Detail

RS5C317B: Features: • Time keeping voltage 1.6V to 6.0V• Lowest supply current 0.6A TYP. (1.5A MAX.) at 3V• Connection to the CPU via only three pins: CE, SCLK/SCLK and SIO for addressing an...

RS5C317B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RS5C317B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Time keeping voltage 1.6V to 6.0V
• Lowest supply current 0.6A TYP. (1.5A MAX.) at 3V
• Connection to the CPU via only three pins: CE, SCLK/SCLK and SIO for addressing and data read/write
• A clock counter (counting hours, minutes, and seconds) and a calendar counter (counting leap years, years,
   months, days, and days of the week) in BCD code
• Periodic interrupt pulses to the CPU with cycles ranging from one month to 1/1024Hz, with interrupt flags and interrupt halt
• Alarm interrupt (days of the week, hours, minutes)
• Counter for timer with internal clock
• Oscillator halt sensing to judge internal data validity
• 32kHz clock output with enable switch
• Second digit adjustment by ±30 seconds
• 12-hour or 24-hour time display selectable
• Automatic leap year recognition up to the year 2099
• CMOS logic
• Package: 14pin SSOP (0.65mm pitch)


Application

• Communication equipment (Multi-function telephone, portable telephone, PHS, pager)
• Business machine (Facsimile, portable facsimile)
• Personal computer (Desktop type, notebook type, word processor, PDA, electronic notebook, TV games)
• Audio visual equipment (Portable audio equipment, video camera, camera, digital camera, remote control equipment)
• Home use (Rice cooker, microwave range)


Pinout

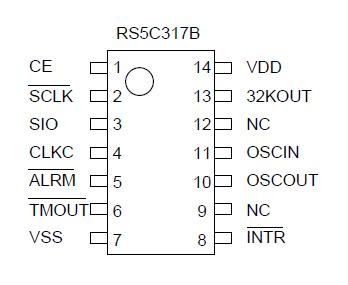

Connection Diagram


Specifications

Symbol
 Item
Conditions
Ratings
Unit
VDD
 Supply voltage
0.3 to +7.0
V
VI
 Input voltage
0.3 to VDD+0.3
V
VO1
 Output voltage 1
SIO, 32KOUT
0.3 to VDD+0.3
V
VO2
 Output voltage 2
INTR , ALRM , MOUT
0.3 to +12
V
PD
 Power dissipation
Topt=25°C
300
mW
Topt
 Operating temperature
40 to +85
°C
Tstg
 Storage temperature
55 to +125
°C

Absolute Maximum ratings are threshold limit values that must not be exceeded even for an instant under any conditions. Moreover, such values for any two items must not be reached simultaneously. Operation above these absolute maximum ratings may cause degradation or permanent damage to the device. These are stress ratings only and do not necessarily imply functional operation below these limits.
