RT9005B

Features: ·Ideal for DDR-I and DDR-II VDDQ, VTT Applications·Integrated Power MOSFETs·Generates Termination Voltage for SSTL_2, SSTL _18, HSTL, SCSI-2 and SCSI-3 Interfaces·High Accuracy Output Voltage at Full-Load·VOUT2 Sink and Source 2A Continuous Current·VOUT2 Adjustment by Two External Resist...

product image

RT9005B Picture
See larger image
SeekIC No. : 004479802 Detail

RT9005B: Features: ·Ideal for DDR-I and DDR-II VDDQ, VTT Applications·Integrated Power MOSFETs·Generates Termination Voltage for SSTL_2, SSTL _18, HSTL, SCSI-2 and SCSI-3 Interfaces·High Accuracy Output Volt...

RT9005B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RT9005B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Ideal for DDR-I and DDR-II VDDQ, VTT Applications
·Integrated Power MOSFETs
·Generates Termination Voltage for SSTL_2,
   SSTL _18, HSTL, SCSI-2 and SCSI-3 Interfaces
·High Accuracy Output Voltage at Full-Load
·VOUT2 Sink and Source 2A Continuous Current
·VOUT2 Adjustment by Two External Resistors
·Shutdown for Suspend to RAM (STR) Functionality
   with High-Impedance Output
·Current Limiting Protection
·On-Chip Thermal Protection
·Available in SOP-8 (Exposed Pad) Packages
·RoHS Compliant and 100% Lead (Pb)-Free


Application

·Desktop PCs, Notebooks, and Workstations
·Graphics Card Memory Termination
·Set Top Boxes, Digital TVs, Printers
·Embedded Systems
·Active Termination Buses
·DDR-I and DDR-II Memory Systems


Pinout

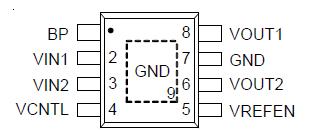

Connection Diagram


Specifications

Supply Input Voltage, VIN ............................ 6V
Power Dissipation, PD @ TA = 25°C
SOP-8 (Exposed)  .............................. 1.33W
Package Thermal Resistance (Note 4)
SOP-8 (Exposed), JA........................... 75°C/W
SOP-8 (Exposed), JC........................... 28°C/W
Junction Temperature  ........................... 150°C
Lead Temperature (Soldering, 10sec.) ................... 260°C
Storage Temperature Range   ..................−65°C to 150°C
ESD Susceptibility (Note 2)
HBM (Human Body Mode)  ........................... 2kV
MM (Machine Mode)   ............................. 200V


Description

The RT9005A/B is a dual-output linear regulator for DDRSDRAM VDDQ supply and termination voltage VTT supply.

The Regulator is capable of actively sinking or sourcing up to 2A. The output termination voltage can be tightly regulated to track 1/2 VDDQ by two external voltage divider resistors.
