RTC-4701

Features: • Built-in 32.768 kHz crystal oscillator with frequency adjusted• Alarm interrupt function for day of week, day, hour, and minute• Timer interrupt function which can be set up between 1/4096 second and 255 minutes• OVF interrupt function based on 12-bit additional...

product image

RTC-4701 Picture
See larger image
SeekIC No. : 004480068 Detail

RTC-4701: Features: • Built-in 32.768 kHz crystal oscillator with frequency adjusted• Alarm interrupt function for day of week, day, hour, and minute• Timer interrupt function which can be s...

RTC-4701 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RTC-4701
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in 32.768 kHz crystal oscillator with frequency adjusted
• Alarm interrupt function for day of week, day, hour, and minute
• Timer interrupt function which can be set up between 1/4096 second and 255 minutes
• OVF interrupt function based on 12-bit additional counter
• Ability to detect stopping of oscillation and time update
• Automatic adjustment for leap year
• Built-in temperature sensor
   ( voltage output : -7.6 mV/°C Typ.)
• Wide range of interface voltage between 1.6 and 5.5 V
• Wide range of clock voltage between 1.6 and 5.5 V
• Low power consumption at 0.5 A / 3 V (Typ.)
• Available as small package ( JE : VSOJ-20 pin )
􀂄􀀃


Pinout

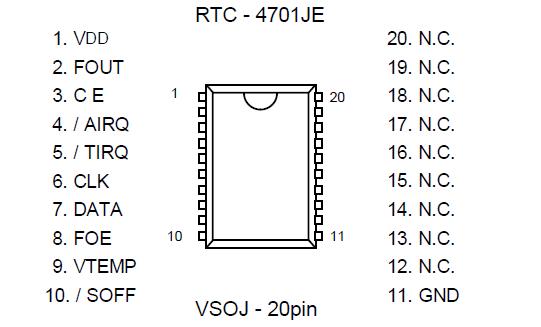

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power voltage
VDD
-
- 0.3 to +7.0
V
Input voltage
VIN
input pin
GND-0.3 to VDD+0.3
V
Output voltage 1
VOUT1
/AIRQ , /TIRQ pins
GND-0.3 to +8.0
V
Output voltage 2
VOUT2
FOUT,DATA pins
GND-0.3 to VDD+0.3
V
Storage temperature
TSTG
-
- 55 to +125
°C



Description

This RTC-4701 module is a serial interface real time clock that has a built-in crystal oscillator. The RTC-4701 module offers many functions such as clock & calendar circuitry with automatic leap year adjustment (from seconds to year), additional counter, alarm, Timer interrupt, stopping of oscillation, and time update. In addition, RTC-4701 is equipped with a diode temperature sensor (analog voltage output).

The serial interface RTC-4701 can be controlled by three signal lines, and it saves the port which a system uses most. Because RTC-4701 is available in small package VSOJ in high density mounting, RTC-4701  is ideally suited for applications such as mobile phones, handy terminals or other small electronic systems.
