RTL8316

Supports up to 16 10/100Mbps Full/Half duplex Ethernet ports with RMII interface
All ports support Speed, Duplex and Flow-control auto-negotiation
Two ports support Speed, Duplex and Flow-control by force-mode setting for fiber applications
Provides non-blocking and non-head-of-line-blocking forwarding
4M bit DRAM built in as packet storage buffer uses page-based buffer management to efficiently utilize the internal packet buffer
Embedded 8K entry look-up table with direct mapping and 128 entries of CAM to eliminate hash collision problems
Only one 50MHz OSC input for both system clock and RMII reference clock
Supports tri-state design on MDC and MDIO during reset period
Flow control fully supported:
       Half-duplex: Back pressure
       Full-duplex: IEEE 802.3x
Broadcast storm filtering control
Aging function supported
Supports Store-and-forward operation
Port Trunking supported. Four trunk groups are provided, each consisting of 4 physical ports. Trunk load balance is controlled by DA/SA hash algorithm.     Trunk Port LEDs supported.
Port based HOME VLAN function
Supports QoS function on each port
      QoS based on: (1) Port-based (2)VLAN tag (3) TCP/IP header's TOS/DS
      Supports two level priority queues
      Weighted round robin service

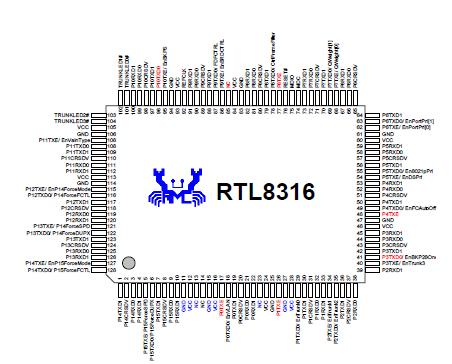

128-pin PQFP, 3.3V single power technology

The RTL8316 provides 16 10/100 Mbps RMII Ethernet ports. Each port can operate in a 10 Mbps or 100 Mbps data rate, and in full or half duplex mode. Speed, duplex, link status and flow control can be acquired by periodically polling the status of the PHY devices via MDIO.

Two ports can support Speed, Duplex and Flow-control abilities through force setting mode for fiber applications. The address look-up table consists of 8K entries of hash table and a 128 entries of CAM. The RTL8316 uses 13 bit MAC address direct mapping method to search the destination MAC address and record source MAC address from and to the hash table.
