RTL8326

Features: 24 10/100Mbps + 2 10/100/1000Mbps portlayer-2 Ethernet switch controller with embedded lookup table and packet buffer Supports SMII on 10/100Mbps ports Supports MII, GMII, or TBI on Giga-ports Complies with 802.3z and 802.3abHalf/full duplex for MII Full duplex for GMII/TBI Built-in PCS...

product image

RTL8326 Picture
See larger image
SeekIC No. : 004480137 Detail

RTL8326: Features: 24 10/100Mbps + 2 10/100/1000Mbps portlayer-2 Ethernet switch controller with embedded lookup table and packet buffer Supports SMII on 10/100Mbps ports Supports MII, GMII, or TBI on Giga-...

RTL8326 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RTL8326
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

24 10/100Mbps + 2 10/100/1000Mbps port
layer-2 Ethernet switch controller with embedded lookup table and packet buffer
  Supports SMII on 10/100Mbps ports
  Supports MII, GMII, or TBI on Giga-ports
  Complies with 802.3z and 802.3ab
Half/full duplex for MII
Full duplex for GMII/TBI
Built-in PCS for SERDES transceiver
  Built-in 8K entry MAC address lookup table plus 64-entry CAM to eliminate hash collision problems
  Built-in 2.5Mbit SSRAM packet buffer
  Non-blocking wire-speed forwarding and filtering (8.8Gbps throughput)
Store and forward architecture and head-ofline blocking prevention
  All ports support Speed, Duplex, and 802.3x flow-control ability auto-negotiation
  Supports broadcast storm filtering control
  Supports 802.3x full duplex flow control and back pressure half duplex flow control
  Supports Trunking function with load balancing and fault tolerance for 10/100M ports and Gigabit ports
  Supports up to 32 VLAN groups for portbased VLAN and 802.1Q tag VLAN
  Supports Leaky VLAN
  Two priority queues for three types of Classof Service (CoS)
  Port- based 802.1p priority tag
  TCP/IP header's TOS/DS classifier
Weighted round robin queue scheduling
Priority tag insert and remove function
Supports ASIC based IGMP snooping function
Supports pin strapping, EEPROM, or serial CPU configuration interface
Supports PHY register read/write access
Supports Realtek Remote Control Protocol (RRCP®) for in-band configuration and management
Supports SMII/GMII interface I/O delay control
Supports simple MIB counters
TX/RX packet/byte, CRC error, and collision counter for diagnostics/statistics
Supports per-port bandwidth control
Supports loop detection and indication function
Provides serial LED and parallel LED interface for port properties and diagnostic display
Needs only one low cost 25MHz crystal or OSC input
0.18µm, 208-pin PQFP, 3.3V single power, 5V I/O tolerance

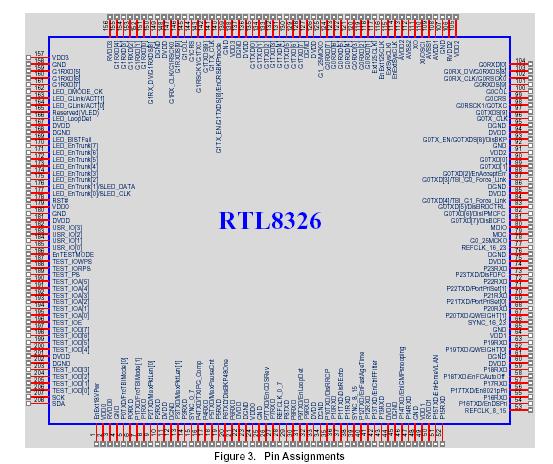

Pinout

Connection Diagram


Description

Realtek provides this document "as is", without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors.
