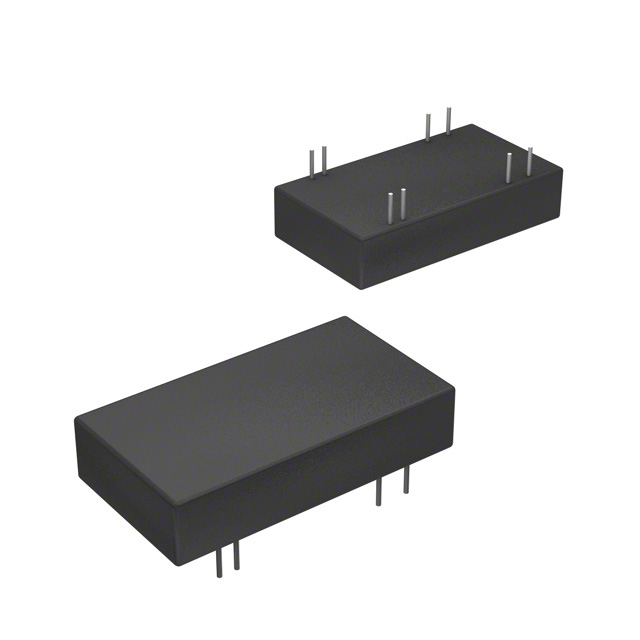

RW-1205D

Output Current (Channel 1) :
Output Current (Channel 2) :
Mounting Style :
Product : Isolated
Number of Outputs : 2
Output Power : 3 W
Input Voltage (nominal) : 12 V
Output Voltage (Channel 2) : 5 V
Input Voltage Range : 9 V to 18 V
Output Voltage (Channel 1) : - 5 V
Package / Case Size : DIP-24 Miniature


Features:

DIP24 Miniature Package
2:1 Wide Range Voltage Input
3kVDC Isolation
UL94V-0 Package Material
Continuous Short Circuit Protection
Low profile 7mm Height
Cost Effective
Short Lead Time
No External Capacitor needed
Full SMD Construction
100% Burned In
Efficiency to 85%


Description

The RW series with 2:1 input voltage ranges and max. height of 7,0 mm has been designed for the telecom - and industrial automation markets. They are particularly aimed at applications where pcb-space is at a premium, still requiring industrial standard pinning. The converters of RW-1205D supply the full 3 Watts without additional heat-sinks over the temperature range -40°C to +85°C.
