Features: · Display Area 5-dot font 12-column x 2-line (+4 columns) 24-column x 1-line (+8 columns) 6-dot font 10-column x 2-line (+6 columns) 20-column x 1-line (+12 columns) Values in parentheses indicate the number of columns outside the display area.· Icon Display 60 icons (max.) Icons can be ...

product image

S-4561A Picture
See larger image
SeekIC No. : 004482401 Detail

S-4561A: Features: · Display Area 5-dot font 12-column x 2-line (+4 columns) 24-column x 1-line (+8 columns) 6-dot font 10-column x 2-line (+6 columns) 20-column x 1-line (+12 columns) Values in parentheses ...

S-4561A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S-4561A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Display Area
   5-dot font
     12-column x 2-line (+4 columns)
     24-column x 1-line (+8 columns)
   6-dot font
     10-column x 2-line (+6 columns)
     20-column x 1-line (+12 columns)
     Values in parentheses indicate the number of columns
     outside the display area.
·  Icon Display
     60 icons (max.)
     Icons can be displayed on the upper and lower panel.
·  Fonts: 5-dot display mode and 6-dot display mode
·  Interface
     4-bit, 8-bit high-speed parallel interface (80-/68-Family CPU)
     Serial interface
·  Driver Output
     60 segments
    16 commons+ Icon common :
·  Character Generator ROM (CGROM)
     9600 bits, 5´8 bits character font, 240 characters
·  Character Generator RAM (CGRAM)
     8 character x 5 x 8=320 bits
·  Display Data RAM (DDRAM)
     2 lines x 16 characters=2 x 16 x 8=256 bits
     (4 characters are displayed outside the display area)
·  Display Clock
     Either internal CR oscillating circuit or external clock input :
     CR oscillation: 34 kHz
                            (Frame Frequency=76.9 Hz)
· Duty Cycle: 1/17
· Internal LCD Drive Bias Voltage Generator
  Internal Bias Resistor :
       Command selection 1/5 or 1/4 bias
  External Bias Resistor :
       Free setting of 1/2 bias or more
· Normal Instructions
    Display Clear, Cursor Home, Display
    ON/OFF, Display Character Blink,
    Cursor Shift, Display Shift, Cursor
    ON/OFF
· Extended Instructions
     Contrast Adjustment, Smooth Scroll
     Control, Icon Control, Icon Blink, Bias
    Resistor Select, Change of Number of
    Display Columns, Power Save, Icon Only
    Display, Booster Drive Frequency Select
· Reset Circuit : Hardware Reset
· Internal Booster : Dual Booster
· Power Supply Voltage Range
     Logic Power : 2.4 V to 5.5 V
     LCD Drive Power : 2.7 V to 6.5 V
· Low Current Consumption :
     Approx. 0 mA (during power save operation)
· Delivered on gold bump bare chips,
· Notice that isolation of the IC from light exposure
     is not taken into account for this IC design.
     Be sure to take measures not to expose light to
     the surface, back, or side of the IC in order to
     prevent this IC from malfunctioning.


Pinout

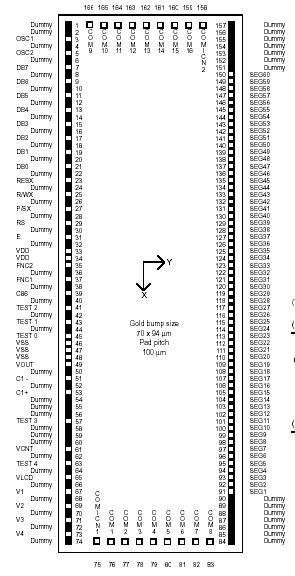

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Supply voltage
VDD
-0.4 to +7.0
V
LCD drive voltage 1
VLCD
-0.4 to +8.0
V
LCD drive voltage 2
V1, V2, V3, V4
VLCD-0.4
V
Input voltage
VIN
-0.4 to VDD +0.4
V
Output voltage
VOUT
-0.4 to VDD +0.4
V
Operating temperature range
Topr
-30 to +85
°C
Storage
temperature range		 Chip
Tstg
-55 to +125
°C
TCP
-55 to +100



Description

The S-4561A is a 17-common x 60-segment output character LCD controller-driver with built-in serial and parallel interfaces. The S-4561A incorporates CGROM, making character display possible. Independently of the CPU, display on the LCD panel is executed via the internal oscillating circuit or clock input. The S-4561A has a wide variety of command instructions which minimize the load of the CPU. It also features a wide voltage range, low power consumption, and it is provided with a power save function, making the S-4561A a suitable display device for applications in portable electronics.
