S-75V08ANC

Features: · Wide power supply range: 2 V to 5.5 V· Low current consumption: 1.0 mA max. (at 5.5 V, 25°C)· Typical propagation delay: tpd = 3.8 ns (at 5 V)· High noise immunity: VNIH=VNIL=28% VCC minimum· Power down protection: All pins· Very small plastic package: SC-88AApplication· Personal compu...

product image

S-75V08ANC Picture
See larger image
SeekIC No. : 004482999 Detail

S-75V08ANC: Features: · Wide power supply range: 2 V to 5.5 V· Low current consumption: 1.0 mA max. (at 5.5 V, 25°C)· Typical propagation delay: tpd = 3.8 ns (at 5 V)· High noise immunity: VNIH=VNIL=28% VCC min...

S-75V08ANC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S-75V08ANC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide power supply range: 2 V to 5.5 V
· Low current consumption: 1.0 mA max. (at 5.5 V, 25°C)
· Typical propagation delay: tpd = 3.8 ns (at 5 V)
· High noise immunity: VNIH=VNIL=28% VCC minimum
· Power down protection: All pins
· Very small plastic package: SC-88A


Application

· Personal computers,
  peripherals
· Cellular phones
· Cameras
· Games


Pinout

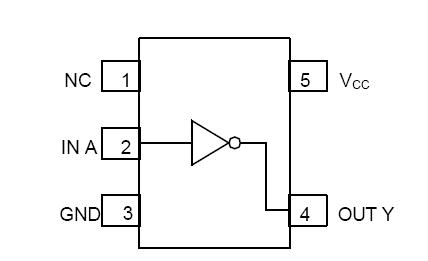

Connection Diagram


Specifications

Item Symbol Conditions Ratings Unit
Power Supply Voltage VCC   -0.5 to +7.0 V
Input Voltage VIN   -0.5 to +7.0 V
Output Voltage VOUT   -0.5 to VCC+0.5 V
Input Parasitic Diode
Current		 IIK   -20 mA
Output Parasitic Diode
Current		 IOK   ±20 mA
Output Current IOUT   ±25 mA
VCC/GND Current ICC   ±50 mA
Power Dissipation PD   200 mW
Storage Temp. Range Tstg   -65 to +150 °C
Lead Temperature
(10 sec.)		 TL   260 °C



Description

The S-75V08ANC is a INVERTER fabricated by utilizing advanced silicon-gate CMOS technology which provides the inherent benefit CMOS low power consumption to achieve ultra high speed operation correspond to LSTTL IC's.

All gates of the internal circuitry have buffered outputs to ensure noise immunity and output stability.

Input voltage is allowed to be applied even if power voltage is supplied because no diode is inserted between an input pin and VCC.

This allows for interfaces between power supplies of different voltage, output level conversion from 5 V to 3 V and battery backup applicatio
