Product Details

Description



Features:

High input-voltage device (absolute maximum rating: 18 V)
Wide operating voltage range: 2.0 V to 16 V
The delay time for every detection can be set via an external capacitor. Each delay time for Overcharge detection, Overdischarge detection, Overcurrent        detection are"Proportion of hundred to ten to one."
Two overcurrent detection levels (protection for short-circuiting)
Internal auxiliary over voltage detection circuit (Fail safe for over voltage)
Internal charge circuit for 0V battery (Unavailable is option)
Low current consumption
        --Operation                     7.5 A typ.       14.2 A max (-40 to +85 °C)
        --Power-down mode       0.2 nA typ.        0.1 A max (-40 to +85 °C)
TSSOP package (8-pin) 6.4 mm*3.1 mm


Application

Lithium-ion rechargeable battery packs

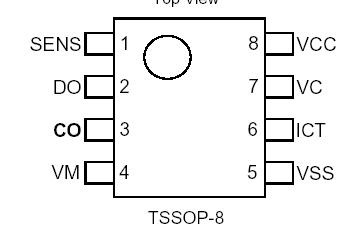

Pinout

Connection Diagram


Specifications

Item Symbol Applied Pins Rating Unit
Input voltage between VCC and VSS VDS VCC VSS-0.3 to VCC+18 V
SENS Input terminal voltage VSENS SENS VSS-0.3 to VCC+0.3 V
ICT Input terminal voltage VICT ICT VSS-0.3 to VCC+0.3 V
VM Input terminal voltage VVM VM VCC-18 to VCC+0.3 V
DO output terminal voltage VDO DO VSS-0.3 to VCC+0.3 V
CO output terminal voltage VCO CO VVM-0.3 to VCC+0.3 V
Power dissipation PD   300 mW
Operating temperature range Topr   -40 to +85 °C
Storage temperature range Tstg   -40 to +125 °C



Description

This S-8232 IC is provided with the two overcurrent detection levels (VIOV1 and VIOV2) and the two overcurrent detection delay time (tIOV1 and tIOV2) corresponding to each overcurrent detection level.

If the discharging current of S-8232 becomes equal to or higher than a specified value (the VM terminal voltage is equal to or higher than the overcurrent detection voltage) during discharging under normal condition and it continues for the overcurrent detection delay time (tIOV) or longer, the discharging FET turns off to stop discharging. This condition is called an overcurrent condition. The VM and VSS terminals are shorted by the Rvsm resistor at this time. The charging FET turns off.

When the discharging FET is off and a load is connected, the VM terminal voltage equals the VCC potential.

The overcurrent condition of S-8232 returns to the normal condition when the load is released and the impedance between the EB- and EB+ terminals (see Figure 6 for a connection example) is 200MW or higher. When the load is released, the VM terminal, which and the VSS terminal are shorted with the Rvsm resistor, goes back to the VSS potential. The S-8232 IC detects that the VM terminal potential returns to overcurrent detection voltage 1 (VIOV1) or lower and returns to the normal condition.
