Product Details

Description



Features:

(1) High-accuracy voltage detection for each cell
• Overcharge detection voltage n (n=1 to 4) 3.9 V to 4.4 V (50 mV step) Accuracy ±25 mV
• Hysteresis voltage n (n=1 to 4) of overcharge detection −0.10 V to −0.40 V (50 mV step) or 0 V Accuracy ±50 mV (Overcharge release voltage n (=Overcharge detection voltage n + Hysteresis voltage n) can be selected within the range 3.8 V to 4.4 V.)
• Overdischarge detection voltage n (n=1 to 4) 2.0 V to 3.0 V (100 mV step) Accuracy ±80 mV
• Hysteresis voltage n (n=1 to 4) of overdischarge detection 0.20 V to 0.70 V or 0 V (100 mV step) Accuracy ±100 mV (Overdischarge release voltage n (=Overdischarge detection voltage n + Hysteresis voltage n) can be selected within the range 2.0 V to 3.4 V.)
(2) Three-level overcurrent protection including protection for short-circuiting
• Overcurrent detection voltage 1 0.05 V to 0.3 V (50 mV step) Accuracy ±25 mV
• Overcurrent detection voltage 2 0.5 V Accuracy ±100 mV
• Overcurrent detection voltage 3 VDD/2 Accuracy ±15 %
(3) Delay times for overcharge detection, overdischarge detection and overcurrent detection 1 can be set by external capacitors.
(Delay times for overcurrent detection 2 and 3 are fixed internally.)
(4) Charge/discharge operation can be controlled through the control pins.
(5) High-accuracy battery monitor amp GAMP = VBATTERY * 0.2 ±1.0%
(6) Voltage regulator VOUT = 3.3 V ±2.4 % (3 mA max.)
(7) High input-voltage device Absolute maximum rating: 26 V
(8) Wide operating voltage range 6 V to 18 V
(9) Wide operating temperature range: −40 to +85
(10) Low current consumption
Operation mode 120 A max.
Power down mode 0.1 A max.
(11) Small package 16-Pin TSSOP package
(12) Lead-free products




Application

• Lithium-ion rechargeable battery packs
• Lithium- polymer rechargeable battery packs

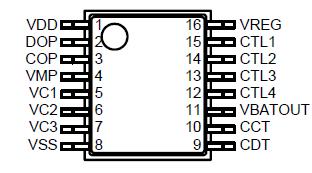

Pinout

Connection Diagram


Specifications

Parameter Symbol Applied Pins Rating Unit
Input voltage VDD VDS - VSS−0.3 to VSS+26 V
Input voltage VIN VC1, VC2, VC3, CCT, CDT VSS−0.3 to VDD+0.3 V
VMP pin Input voltage VMP VMP VSS−0.3 to VSS+26 V
DOP pin output voltage VDOP DOP VSS−0.3 to VDD+0.3 V
COP pin output voltage VCOP COP VSS−0.3 to VSS+26 V
VREG pin output voltage VOUT VREG VSS−0.3 to VDD+0.3 V
CTL1 pin input voltage VCTL1 CTL1 VSS−0.3 to VDD+0.3 V
CTL2 to CTL4 pin input voltage VCTLn CTL2, CTL3, CTL4 VSS−0.3 to VOUT+0.3 V
Cell voltage output voltage VBATOUT VBATOUT VSS−0.3 to VOUT+0.3 V
Power dissipation PD - 300 mW
Operation ambient temperature Topr - −40 to +85
Storage temperature Tstg - −40 to +125

Caution The absolute maximum ratings are rated values exceeding which the product could suffer physical damage. These values must therefore not be exceeded under any conditions.




Description

The S-8243A/B is a series of lithium-ion rechargeable battery protection ICs incorporating high-accuracy battery protection circuits, a battery monitor amp and a voltage regulator which drives microcomputer and gas gauge IC. Combining microcomputer or gas gauge IC facilitates displaying a remaining amount of battery.

The S-8243A/B is suitable for protection of 3-serial or 4-serial cell lithium-ion battery packs from overcharge, overdischarge and overcurrent.
