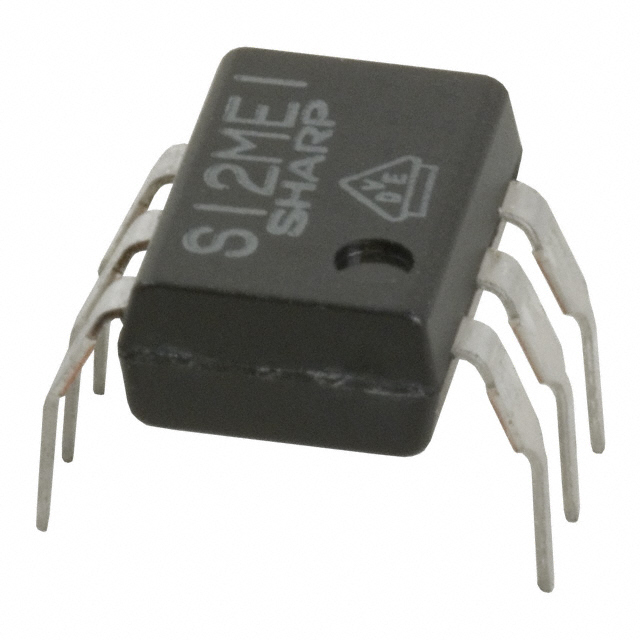

See larger image

SeekIC No. : 004481180 Detail

S12ME1F: Features: 1. Internal insulation distance : 0.4mm or more2. Creepage distance : 8mm or more Space distance : 5mm or more (S12ME1)8mm or more (S12ME1F)3. Recognized by UL file No. E64380 Approved by ...

S12ME1F Data Sheet

Get Latest Price

Part Number:: S12ME1F
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

S12M evaluate
US $2.03 - 2.73 / Piece

Rectifiers 1000V 12A Std. Recovery
S12MD1V evaluate
Features: 1. High RMS ON-state current ( IT : MAX.200mArms )2. High repetitive peak OFF-state volt...
S12MD3 evaluate
US $.77 - 1.22 / Piece

PHOTOCOUPL 280VAC .2A THYR 8-DIP

Product Details

Description

Features:

1. Internal insulation distance : 0.4mm or more
2. Creepage distance : 8mm or more Space distance : 5mm or more (S12ME1)8mm or more (S12ME1F)
3. Recognized by UL file No. E64380 Approved by BSI (BS415 : NO.7088, BS7002 : NO.7410)

Application

1. ON-OFF operation for low power load
2. For triggering medium or high power thyristor and triac
3. Over voltage detection of switching power supplies

Specifications

Parameter		Symbol	Rating	Unit
Input	Forward current	I_F	50	mA
Input	Reverse voltage	V_R	6	V
Output	RMS ON-state current	I_T	0.2	A_RMS
	*1Peak one cycle surge current	I_surge	2	A
	*2Repetitive peak OFF-state voltage	V_DRM	400	V
	*2Repetitive peak OFF-state voltage	V_DRM	400	V
*3 Isolation voltage		V_iso	4000	V_RMS
Operating temperature		T_OPR	- 30 to +100
Storage temperatrue		T_STG	- 40 to +125
*4 Soldering temperature		T_SOL	260

*1 50Hz sine wave
*2 RG = 20k
*3 40 to 60% RH, AC for 1 minute, f = 60Hz
*4 For 10 seconds
