S1A0501X01

Features: • 3-Input multiplexing• Source Level trimmer (selectable input level)• Volume control in 0.6dB step• Tone control (internal bass/treble function block with external components)• Source out / volume in (enable ext.graphic eq./ noise reduction equipment)•...

product image

S1A0501X01 Picture
See larger image
SeekIC No. : 004481370 Detail

S1A0501X01: Features: • 3-Input multiplexing• Source Level trimmer (selectable input level)• Volume control in 0.6dB step• Tone control (internal bass/treble function block with external...

S1A0501X01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1A0501X01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-Input multiplexing
• Source Level trimmer (selectable input level)
• Volume control in 0.6dB step
• Tone control (internal bass/treble function block with external components)
• Source out / volume in (enable ext.graphic eq./ noise reduction equipment)
• Loudness / mute
• Fader control ( separated for balance )
• All functions are programmable / controllable via serial I2C busor general Micom interface protocol.


Pinout

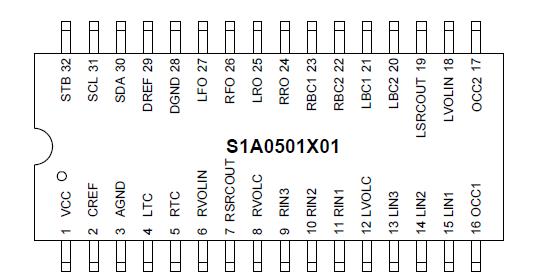

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage
VCCMAX
15.0
V
Max.Power Dissipation
PD(MAX)
1000
mW
Max.Operating Temperature
TOPR
-20 - +75
Max.Storage temperature
TSTG
-40 - +125



Description

The S1A0501X01 is an audio processor for volume/tone/fadercontrol, which is suitable for car radios or Hi-Fi system. It has abuilt-in trimmer for user to set a source level. R/L rear output ischangable to input in the case of a home audio system for userconveniency, an external equalizer or a noise reduction circuitis selectable.

When the S1A0501X01 is used with some sound-effect equipmentsuch as graphic equalizer, the internal tone control blockof S1A0501X01 can be bypassed for decreasing redundancy.All selections and function controls are designed to be controlledby an I2C-bus protocol or a general microprocessorinterface protocol.
