S1D13305

Features: • Text, graphics and combined text/graphics displaymodes• Three overlapping screens in graphics mode• Up to 640 ´ 256 pixel LCD panel display resolution• Programmable cursor control• Smooth horizontal and vertical scrolling of all or part of the displa...

product image

S1D13305 Picture
See larger image
SeekIC No. : 004481406 Detail

S1D13305: Features: • Text, graphics and combined text/graphics displaymodes• Three overlapping screens in graphics mode• Up to 640 ´ 256 pixel LCD panel display resolution• Prog...

S1D13305 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1D13305
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Text, graphics and combined text/graphics display
modes
• Three overlapping screens in graphics mode
• Up to 640 ´ 256 pixel LCD panel display resolution
• Programmable cursor control
• Smooth horizontal and vertical scrolling of all or part of the display
• 1/2-duty to 1/256-duty LCD drive
• Up to 640 ´ 256 pixel LCD panel display resolution memory
• 160, 5 ´ 7 pixel characters in internal mask-programmed character generator ROM
• Up to 64, 8 ´ 16 pixel characters in external character generator RAM
• Up to 256, 8 ´ 16 pixel characters in external character generator ROM
• 6800 and 8080 family microprocessor interfaces
• Low power consumption-3.5 mA operating current
   (VDD = 3.5V), 0.05 mA standby current
• Package


Pinout

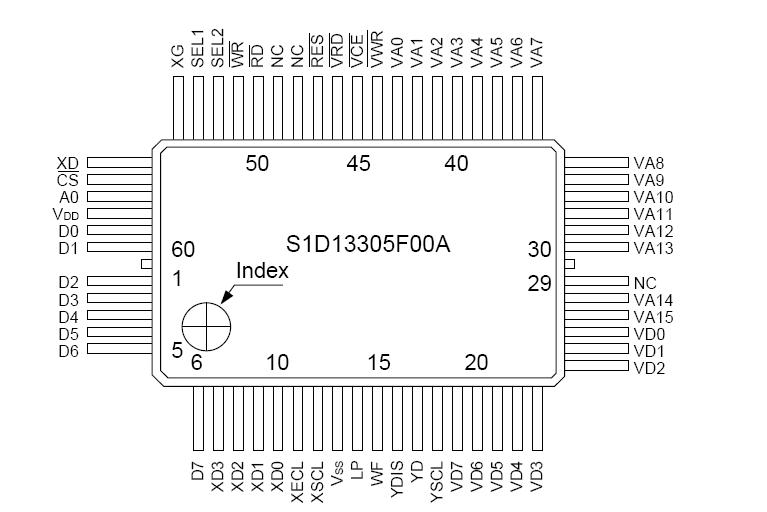

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage range VDD 0.3 to 7.0 V
Input voltage range VIN 0.3 to VDD + 0.3 V
Power dissipation PD 300 mW
Operating temperature range Topg 20 to 75 °C
Storage temperature range Tstg 65 to 150 °C
Soldering temperature (10 seconds). See note 1. Tsolder 260 °C



Description

The S1D13305 series is a controller IC that can display text and graphics on LCD panel. The S1D13305 series can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The S1D13305 series stores text, character codes and bitmapped graphics data in external frame buffer memory. Display controller functions include transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels and generating timing signals for the buffer memory, LCD panel.

The S1D13305 series has an internal character generator with 160, 5 ´ 7 pixel characters in internal mask ROM. The character generators support up to 64, 8 ´ 16 pixel characters in external character generator RAM and up to 256, 8 ´ 16 pixel characters in external character generator ROM.
