S1D2500A01

Features: • 3 - Channel R/G/B Video Amplifier, 150MHz @f-3dB• I2C Bus Control Items - Contrast Control - SUB Contrast Control For Each Channel - Brightness Control - OSD Contrast Control - Cut-off Brightness Control - Cut-off Control For Each Channel - Switch Registers for SBLK and Vid...

product image

S1D2500A01 Picture
See larger image
SeekIC No. : 004481432 Detail

S1D2500A01: Features: • 3 - Channel R/G/B Video Amplifier, 150MHz @f-3dB• I2C Bus Control Items - Contrast Control - SUB Contrast Control For Each Channel - Brightness Control - OSD Contrast Control...

S1D2500A01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1D2500A01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3 - Channel R/G/B Video Amplifier, 150MHz @f-3dB
• I2C Bus Control Items - Contrast Control - SUB Contrast Control For Each Channel - Brightness Control - OSD Contrast Control - Cut-off Brightness Control - Cut-off Control For Each Channel - Switch Registers for SBLK and Video Half Tone and Cut-Off INT/EXT
• SUB Contrast Control Range: -11dB
• Capable of 7.0Vpp Output Swing Range
• Video/OSD High Speed Switch 28-DIP-600A ORDERING INFORMATION Device Package Operating Temperature S1D2500A01-D0B0 28-DIP-600A -20 °C - +75 °C
• Clamp Gate With Anti OSD Sagging
• B/U (Brightness Uniformity) Interface
• Video Input Clamp, BRT Clamp
• Video & OSD Half Tone Function on OSD Picture (OSD Raster Selection by HS1, 2: 4 colors)
• OSD Interface, OSD BLK
• ABL
• TTL R/G/B OSD Inputs, 80MHz bandwidth
• Contrast Control Range: -38dB
• OSD Contrast Control Range: -38dB




Pinout

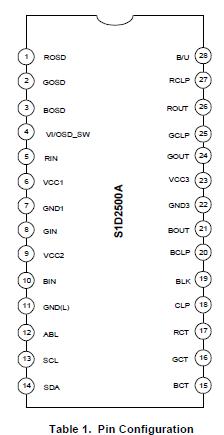

Connection Diagram


Specifications

NO
Item
Symbol
Vlaue
Unit
Min
Typ
Max
1
 Maximum Supply Voltage
Vcc 1/2/VDD
-
-
13.2
V
2
 Operating Temperature (2)
TOPR
-20
-
75
3
 Storage Temperature
TSTG
-65
-
150
4
 Operating Supply Voltage
VCCOP
11.4
12.0
12.6
V(3)
5
 Power Dissipation
PD
-
-
2.0
W
