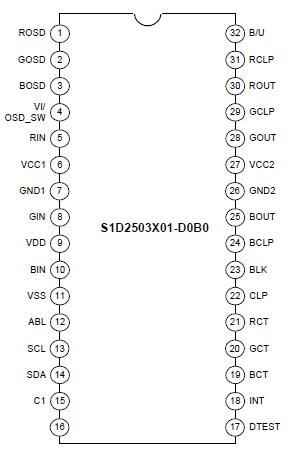

S1D2503X01-D0B0

• 3-channel matched R/G/B Video Amplifier
• I2C BUS control items - Contrast control - Brightness control - SUB contrast control for each channel - OSD contrast control - Cut-off control for each channel - Brightness control for cut-off - Switch registers for SBLK, half tone, cut-off INT/EXT, BPS (Blank Pulse Input Polarity Selection) and CPS (Clamp Pulse Input Polarity Selection).
• Built in clamp gate with anti OSD sagging
• Built in OSD Interface, OSD BLK
• Built in OSD Intensity Interface
• Built in ABL (Automatic Beam Limitation)
• Built in video input clamp, BRT clamp
• Built in video & OSD half tone function on OSD picture (OSD raster 8 colors and 3 raster selection by HR/G/B)
• Built in smooth video contrast control with external capacitor.
• 3-channel R/G/B video amplifier 200MHz @f-3dB
• TTL OSD inputs, 80MHz bandwidth
• Contrast control range: 38dB
• SUB contrast control range: 11dB
• OSD contrast control range: 38dB
• Capable of 7Vp-p output swing
• High speed OSD BLK
