S1D2504A01

Features: • 3-Channel matched R/G/B Video Amplifiers• I2C BUS control items Contrast control for the 3 channels Brightness control for the 3 channels SUB Contrast control for each channel Cut-Off control for each channel Cut-Off Brightness control for the 3 channels Switch Registers ...

product image

S1D2504A01 Picture
See larger image
SeekIC No. : 004481436 Detail

S1D2504A01: Features: • 3-Channel matched R/G/B Video Amplifiers• I2C BUS control items Contrast control for the 3 channels Brightness control for the 3 channels SUB Contrast control for each channe...

S1D2504A01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1D2504A01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-Channel matched R/G/B Video Amplifiers
• I2C BUS control items Contrast control for the 3 channels Brightness control for the 3 channels  SUB Contrast control for each channel  Cut-Off control for each channel Cut-Off Brightness control for the 3 channels Switch Registers for SBLK and Cut-Off Offset Current
• Built-in ABL (Automatic Beam Limitation)
• Built-in Video output Brightness clamp
• 3-Channel R/G/B Video Amplifier 85 MHz @f-3 dB
• Contrast Control Range: -38 dB
• SUB Contrast Control Range: -11 dB
• Capable of 7 Vpp Output Swing


Pinout

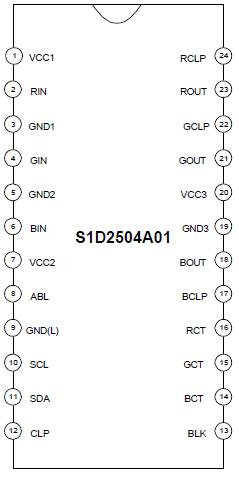

Connection Diagram


Specifications

NO
Item
Symbol
Value
Unit
1
 Normal, Logic, Driver Power Supply
Vcc 1,2,3
13.2
V
2
 Maximum Power Dissipation
PDmax
1.5
W
