Features:

• 3-Channel R/G/B Video Amplifier, 175MHz @f-3dB
• I2C Bus Control Items - Contrast Control - SUB Contrast Control For Each Channel - Brightness Control - OSD Contrast Control - Cut-off Brightness Control - Cut-off Control For Each Channel - Switch Registers for SBLK and Video Half Tone and Cut-Off INT/EXT and BPS (Blank Gate Polarity Selection)
• SUB Contrast Control Range: -11dB
• Capable of 7.0Vpp Output Swing Range
• Video/OSD High Speed Switch
• Clamp Gate With Anti OSD Sagging
• B/U(Brightness Uniformity) Interface
• Video Input Clamp, BRT Clamp
• Video & OSD Half Tone Function on OSD Picture (2 OSD Raster Selection by HR1, HG1, HB1, HR2, HG2, HB2: 8 colors)
• OSD Interface, OSD BLK • ABL
• TTL R/G/B OSD Inputs, 80MHz bandwidth
• Contrast Control Range: -38dB
• OSD Contrast Control Range: -38dB

Pinout

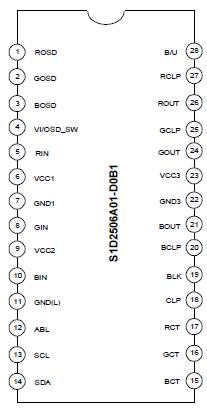

Connection Diagram

Specifications

NO	Item	Symbol	Vlaue			Unit
NO	Item	Symbol	Min	Typ	Max	Unit
1	Maximum Supply Voltage	V_cc 1/2	-	-	13.2	V
2	Operating Temperature ⁽²⁾	T_OPR	-20	-	80
3	Storage Temperature	T_STG	-65	-	150
4	Operating supply voltage	T_CCOP	11.4	12.0	12.6	V⁽³⁾
5	Power Dissipation	P_D	-	-	2.0	W
