Product Details

Description

Application

• Relay driver
• DC motor driver
• Solenoids driver
• LED display driver
• Filament lamp driver
• High power buffer
• Thermal print head driver

Pinout

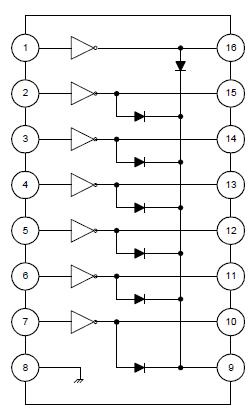

Connection Diagram

Specifications

Characteristic	Symbol	Value	Unit
Power voltage	V_DD	50	V
Input Voltage (S1P2655A02/03/04) (S1P2655A05)	V_IN	30	V
Input Voltage (S1P2655A02/03/04) (S1P2655A05)	V_IN	15	V
Continuous Collector Current	I_C	500	mA
Continuous Input Current	I_IN	25	mA
Power dissipation	P_D	1.0	W
Operating Temperature	T_OPR	-20 to +85
Storage temperature	T_STG	-55 to +150
