General Description
S24163 General Description
The S24163 is a power supervisory device with 16,384- bits of serial E2PROM. It is fabricated using SUMMIT's advanced CMOS E2PROM technology and is suitable for both 3 and 5 volt systems.
The S24163 is internally organized as 2048 x 8. It features the I2C serial interface and software protocol allowing operation on a simple two-wire bus.
S24163 Maximum Ratings
Temperature Under Bias ............................................. -40°C to +85°C
Storage Temperature ................................................ -65°C to +125°C
Soldering Temperature (less than 10 seconds) ........................... 300°C
Supply Voltage .......................................................................... 0 to 6.5V
Voltage on Any Pin ...................................................... -0.3V to VCC+0.3V
ESD Voltage (JEDEC method) ........................................................ 2,000V
NOTE: These are STRESS ratings only. Appropriate conditions for operating these devices are given elsewhere in this specification. Stresses beyond those listed here may permanently damage the part. Prolonged exposure to maximum ratings may affect device reliability.
Storage Temperature ................................................ -65°C to +125°C
Soldering Temperature (less than 10 seconds) ........................... 300°C
Supply Voltage .......................................................................... 0 to 6.5V
Voltage on Any Pin ...................................................... -0.3V to VCC+0.3V
ESD Voltage (JEDEC method) ........................................................ 2,000V
NOTE: These are STRESS ratings only. Appropriate conditions for operating these devices are given elsewhere in this specification. Stresses beyond those listed here may permanently damage the part. Prolonged exposure to maximum ratings may affect device reliability.
S24163 Features
• Precision Supply Voltage Monitor
- Active Low
- Integrated memory write lockout
• Guaranteed RESET (RESET#) assertion to VCC = 1V
• Power-Fail Accuracy Guaranteed
• No External Components
• 3V and 5V system versions
• Low Power CMOS
- Active current less than 3mA
- Standby current less than 25A
• Memory Internally Organized 2k X 8
- Two Wire Serial Interface (I2C™)
Bidirectional data transfer protocol
Standard 100KHz and Fast 400KHz
• High Reliability
- Endurance: 100,000 erase/write cycles
- Data retention: 100 years
• 8-Pin SOIC Packages
- Active Low
- Integrated memory write lockout
• Guaranteed RESET (RESET#) assertion to VCC = 1V
• Power-Fail Accuracy Guaranteed
• No External Components
• 3V and 5V system versions
• Low Power CMOS
- Active current less than 3mA
- Standby current less than 25A
• Memory Internally Organized 2k X 8
- Two Wire Serial Interface (I2C™)
Bidirectional data transfer protocol
Standard 100KHz and Fast 400KHz
• High Reliability
- Endurance: 100,000 erase/write cycles
- Data retention: 100 years
• 8-Pin SOIC Packages
S24163 Typical Application
The S24163 is ideal for applications requiring low voltage and low power consumption. This device provides microcontroller RESET control and can be manually resettable. This device also uses a cost effective, spacesaving, 8-pin SOIC or PDIP plastic package. Typical applications include alarm devices, electronic locks, meters, keys, pagers and cellular phones.

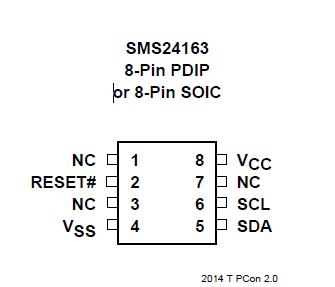

S24163 Connection Diagram
S24163
PDF/DataSheet Download
- Datasheet: S24163
- File Size: 173642 KB
- Manufacturer: Summit Microelectronics, Inc.
- Click here to Download
