S29AL032D

Storage Temperature Plastic Packages. . . . . . . . . . . .65°C to +150°C
Ambient Temperature with Power Applied. . . . . . .  . .65°C to +125°C
Voltage with Respect to Ground
          V_CC (Note 1). . . . . . . . . . . . . . . . . . . . . . . ..  . . .0.5 V to +4.0 V
          A9, OE#, and RESET# (Note 2) . . . . . . . . .. . . .0.5 V to +12.5 V
          All other pins (Note 1). . . . . . . . . . . . . ... . . 0.5 V to V_CC+0.5 V
Output Short Circuit Current (Note 3). . . . . . . .. . . . .  . . . . . . . 200 mA

The S29AL032D is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ0-DQ15; byte mode data appears on DQ0-DQ7. The S29AL032D is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers.

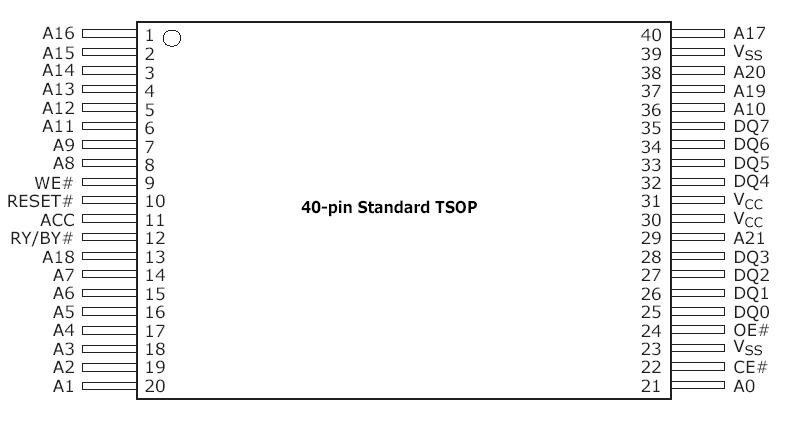

The S29AL032D is available with access times as fast as 70 ns. The devices are offered in 40-pin TSOP, 48-pin TSOP and 48-ball FBGA packages. Standard control pins- chip enable (CE#), write enable (WE#), and output enable (OE#)-control normal read and write operations, and avoid bus con-tention issues.

The S29AL032D requires only a single 3.0 volt power supply for both read and write functions. In-ternally generated and regulated voltages are provided for the pro-gram and erase operations.
