S3C7032

Features: Memory - 1024 * 8-bit program memory (S3C7031) (ROM) - 2048*8-bit program memory (S3C7032) (ROM) - 128 *4-bit data memory (S3C7031) (RAM) - 256 * 4-bit data memory (S3C7032) (RAM)I/O Pins - Up to 15 pins for 20-DIP and 20-SOP packageComparator Inputs - 4-channel mode Internal reference:...

product image

S3C7032 Picture
See larger image
SeekIC No. : 004482089 Detail

S3C7032: Features: Memory - 1024 * 8-bit program memory (S3C7031) (ROM) - 2048*8-bit program memory (S3C7032) (ROM) - 128 *4-bit data memory (S3C7031) (RAM) - 256 * 4-bit data memory (S3C7032) (RAM)I/O Pins ...

S3C7032 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3C7032
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
  - 1024 * 8-bit program memory (S3C7031) (ROM)
  - 2048*8-bit program memory (S3C7032) (ROM)
  - 128 *4-bit data memory (S3C7031) (RAM)
  - 256 * 4-bit data memory (S3C7032) (RAM)

I/O Pins
  - Up to 15 pins for 20-DIP and 20-SOP package

Comparator Inputs
  - 4-channel mode
               Internal reference: 4-bit resolution
  - 3-channel mode
               External reference

8-Bit Basic Timer
  - Programmable interval timer

8-Bit Timer/Counter
  - Programmable interval timer
  - External event counter function
  - Timer clock output to TIO pin

Watch Timer
  - Time interval generation: 0.5 s, 3.9 ms at 4.19 MHz
  - Four frequency outputs to BUZ pin

Bit Sequential Carrier
- 16-bit serial data transfer in arbitrary format

8-Bit Serial I/O Interface
  - 8-bit transmit/receive mode
  - 8-bit receive-only mode
  - LSB-first or MSB-first transmission selectable
  - Internal or external clock source

Interrupts
  - One external interrupt vector
  - Three internal interrupt vectors
  - Two quasi-interrupts

Memory-Mapped I/O Structure
Two Power-Down Modes
  - Idle mode: Only the CPU clock stops
  - Stop mode: Main system clock stops

On-Chip Crystal, Ceramic, Or RC Oscillator
  - Crystal/ceramic: 4.19 MHz (typical)
  - RC: 1 MHz (typical)
  - CPU clock divider circuit (by 4, 8, or 64)

Frequency Outputs
  - Eight frequency outputs to the CLO pin

Instruction Execution Times
  - 0.95, 1.91, 15.3 µs at 4.19 MHz (5 V), 4 µs at 1 MHz (2.7 V)

Operating Temperature:
- 40  to 85

Operating Voltage Range:
- 2.7 V to 6.0 V

Package Type:
- 20-DIP, 20-SOP


Pinout

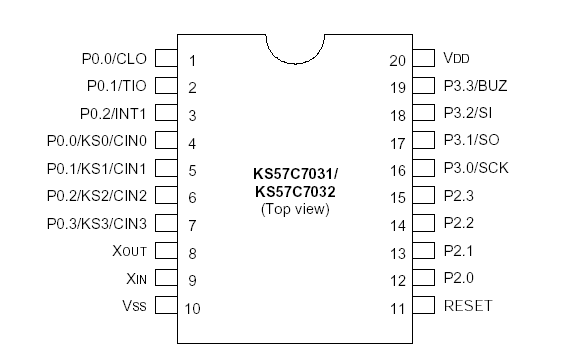

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to7.0
V
Input voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
5
mA
All I/O ports active
15
Output current low
IOL
One I/O port active
25
mA
All I/O port, total
100
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150



Description

The S3C7032 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core.

With comparator inputs, high-current LED direct-drive pins, serial I/O interface, and a versatile 8-bit timer/counter, the S3C7032 offers an excellent design solution for a wide range of applications such as mouse controllers, subsystem controllers, and toys.

Up to 15 pins of the 20-pin DIP or 20-pin SOP package can be dedicated to I/O. Pull-up resistors are assignable to all of the pins by software. Four vectored interrupts provide fast response to internal and external events. In addition, the S3C7032's advanced CMOS technology provides for very low power consumption and a wide operating voltage range.
