Product Details

Description



Features:

Memory
• ROM: 32K-byte (S3C8249/P8249)
• ROM: 16K-byte (S3C8245/P8245)
• RAM: 1056-Byte (S3C8249/P8249, S3C8247)
• RAM: 544-Byte (S3C8245/P8245, S3C8248)
• Data memory mapped I/O

Oscillation Sources
• Crystal, ceramic, RC (main)
• Crystal for subsystem clock
• Main system clock frequency 1-10 MHz (3 MHz at 1.8 V, 10 MHz at 2.7 V)
• Subsystem clock frequency: 32.768 kHz
• CPU clock divider (1/1, 1/2, 1/8, 1/16)

Two Power-Down Modes
• Idle (only CPU clock stops)
• Stop (System clock stops)

Interrupts
• 6 level 8 vector 8 internal interrupt
• 2 level 8 vector 8 external interrupt

Watch Timer
• Real-time and interval time measurement
• Clock generation for LCD
• Four frequency outputs for buzzer sound

LCD Controller/Driver
• Maximum 16-digit LCD direct drive capability
• Display modes: static, 1/2 duty (1/2 bias)
• 1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias)

A/D Converter
• Eight analog input channels
• 50  s conversion speed at 1 MHz fADC clock
• 10-bit conversion resolution

8-Bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first/MSB-first transmission selectable
• Internal/external clock source

Voltage Booster
• LCD display voltage supply
• S/W control en/disable
• 3.0 V drive

45 I/O Pins
• 45 configurable I/O pins

Basic Timer
• Overflow signal makes a system reset.
• Watchdog function

8-Bit Timer/Counter A
• Programmable 8-bit timer
• Interval, capture, PWM mode
• Match/capture, overflow interrupt

8-Bit Timer/Counter B
• Programmable 8-bit timer
• Carrier frequency generator

16-Bit Timer/Counter 0
• Programmable 16-bit timer
• Match interrupt generates

16-Bit Timer/Counter 1
• Programmable 16-bit timer
• Interval, capture, PWM mode
• Match/capture, overflow interrupt

Voltage Detector
• Programmable detection voltage (2.2 V, 2.4 V, 3.0 V, 4.0 V)
• En/Disable S/W selectable

Instruction Execution Times
• 400 ns at 10 MHz (main)
• 122 us at 32.768 kHz (subsystem)

Operating Temperature Range
• -40 to 85

Operating Voltage Range
• 1.8 V to 5.5 V

Package Type
• 80-pin QFP
• 80-pin TQFP

S3C8249's ROM version device
• S3C8247 (ROM 24K-byte)

S3C8245's ROM version device
• S3C8248 (ROM 8K-byte)


Pinout

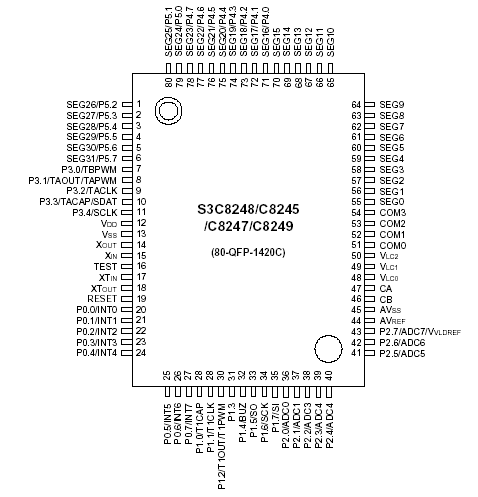

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
0.3 to VDD + 0.3
Output voltage
VO
-0.3 to VDD + 0.3
Output current high
IOH
 One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
 One I/O pin active
+30
Total pin current for ports
+100
Operating temperature
TA
40to + 85
Storage temperature
TSTG
65 to + 150




Description

The S3C8249 single-chip CMOS microcontroller are fabricated
using the highly advanced CMOS process, based on Samsung's newest CPU architecture.

The S3C8248, S3C8245, S3C8247, S3C8249 are a microcontroller with a 8K-byte, 16K-byte, 24K-byte.
32K-byte mask-programmable ROM embedded respectively.

The S3P8245 is a microcontroller with a 16K-byte one-time-programmable ROM embedded.
The S3P8249 is a microcontroller with a 32K-byte one-time-programmable ROM embedded.

Using a proven modular design approach, Samsung engineers have successfully developed the S3C8249 by integrating the following peripheral modules with the
powerful SAM8 core:

  - Six programmable I/O ports, including five 8-bit ports and one 5-bit port, for a total of 45 pins.
  - Eight bit-programmable pins for external interrupts.
  - One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
  - Two 8-bit timer/counter and two 16-bit timer/counter with selectable operating modes.
  - Watch timer for real time.
  - 8-input A/D converter
  - Serial I/O interface

The S3C8249 is versatile microcontroller for camera, LCD and
ADC application, etc. They are currently available in 80-pin TQFP and 80-pin QFP package
