S3C830A

Features: CPU• SAM88RC CPU coreMemory• 2064-byte internal register file (including LCD display RAM)• 48K-byte internal program memory areaInstruction Set• 78 instructions• Idle and Stop instructions72 I/O Pins• 32 normal I/O pins• 40 pins sharing with LCD ...

product image

S3C830A Picture
See larger image
SeekIC No. : 004482163 Detail

S3C830A: Features: CPU• SAM88RC CPU coreMemory• 2064-byte internal register file (including LCD display RAM)• 48K-byte internal program memory areaInstruction Set• 78 instructionsR...

S3C830A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3C830A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM88RC CPU core

Memory
• 2064-byte internal register file (including LCD display RAM)
• 48K-byte internal program memory area

Instruction Set
• 78 instructions
• Idle and Stop instructions

72 I/O Pins
• 32 normal I/O pins
• 40 pins sharing with LCD segment signals

Interrupts
• 8 interrupt levels and 17 internal sources
• Fast interrupt processing feature

8-Bit Basic Timer
• Watchdog timer function
• 4 kinds of clock source

Timer/Counter 0
• Programmable 8-bit internal timer
• External event counter function
• PWM and capture function

Timer/Counter 1
• Programmable 8-bit interval timer
• External event counter function

Timer/Counter 2
• Programmable 16-bit interval timer
• External event counter function

Watch Timer
• Interval Time: 50ms, 0.5s, 1.0s at 4.5 MHz
• 1/1.5/3/6 kHz buzzer output selectable

Analog to Digital Converter
• 4-channel analog input
• 8-bit conversion resolution

Two 8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• Selectable baud rate or external clock source

PLL Frequency Synthesizer
• VIN level: 300mVpp (minimum)
• AMVCO range: 0.5 MHz30 MHz
• FMVCO range: 30 MHz150 MHz

16-Bit Intermediate Frequency (IF) Counter
• VIN level: 300mVpp (minimum)
• AMIF range: 100 kHz1 MHz
• FMIF range: 5 MHz15 MHz

LCD Controller/Driver
• 40 segments and 4 common terminals
• 4/3/2 common and static selectable
• Internal or external resistor circuit for LCD bias

Low Voltage Reset (LVR)
• Low voltage check to make system reset
• VLVR: 3.5 V (typical)

Two Power-Down Modes
• Idle mode: only CPU clock stops
• Stop mode: system clock and CPU clock stop

Oscillation Source
• Crystal or ceramic for system clock (fx)

Instruction Execution Time
• 890 ns at 4.5 MHz (minimum)

Operating Temperature Range
• 25 to +85

Operating Voltage Range
• 3.0 V to 5.5 V at 0.4 MHz4.5 MHz
• 4.5 V to 5.5 V in PLL/IFC block

Package Type
• 100-pin QFP package

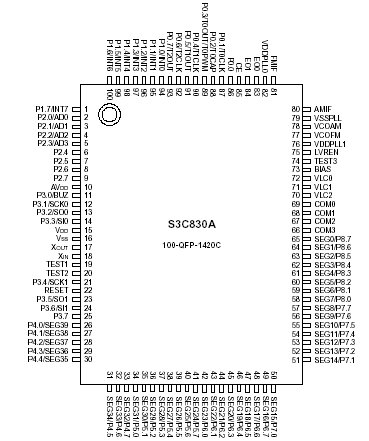

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
 Ports 08
0.3 to VDD + 0.3
Output voltage
VO
                                     -
-0.3 to VDD + 0.3
Output current high
IOH
One I/O pin active
-15
mA
All I/O pins active
60
Output current low
IOL
One I/O pin active
+ 30
Total pin current for port
+ 100
Operating temperature
TA

40 to + 85
Storage temperature
TSTG

65 to + 150




Description

The S3C830A single-chip microcontroller are fabricated using the highly advanced CMOS process. Its design is based on the powerful SAM88RC CPU core. Stop and idle (power-down) modes were implemented to reduce power consumption.

The S3C830A is a microcontroller with a 48K-byte mask-programmable ROM embedded.
The S3P830A is a microcontroller with a 48K-byte one-time-programmable ROM embedded.

Using the SAM88RC modular design approach, the following peripherals of S3C830A were integrated with the SAM88RC CPU core:

  - Large number of programable I/O ports (Total 72 pins)
  - PLL frequency synthesizer
  - 16-bits intermediate frequency counter
  - Two synchronous SIO modules
  - Two 8-bit timer/counters
  - One 16-bit timer/counter
  - Low voltage reset
  - A/D converter with 4 selectable input pins
