Product Details

Description

Features:

CPU
` SAM87RC CPU core
Memory
` 1808-byte of internal register file
` 64-Kbyte internal program memory area
External Interface
` 64-Kbyte external data memory area
` 64-Kbyte external program memory (ROMless)
Instruction Set
` 78 instructions
` IDLE and STOP instructions
Instruction Execution Time
` 558ns at 7.15909MHz fx (minimum)
` 122us at 32.768kHz (sub clock)
Interrupts
` Seven interrupt levels
` Eight external interrupt pins
Timer / Counters
` One 8-bit Basic Timer for watchdog function
` One 8-bit Timer/Counter (Timer 0) with three
operating mode; Interval, Capture, PWM
` One 16-bit Timer/Counter
One 16-bit Timer/Counter mode
Two 8-bit Timer/Counters A/B mode
Timer/Counter B including PWM mode
(6, 7, 8-bit PWM with 1-channel output : push-pull type)
Watch Timer
` Interval Time:3.91ms, 0.25s, 0.5s, 1s at 32.768 kHz
` Four frequency outputs to BUZ pin
8-bit Serial I/O
` 8-bit transmit/receive mode
` 8-bit receive mode
` Selectable baud rate or external clock source
General I/O
` 80-bit I/O pins
Analog to Digital Converter
` Four analog input pins
` 10-bit conversion resolution
` Internal AVREF, AVSS only
Caller ID Receiver
` FSK demodulator with sensitivity -45dBm (in
600W) conforms to Bell 202 and CCITT V.23 standards
` Receive sensitivity of 38dBm (in 600W) for
CAS
` Stutter Dial Tone detector with sensitivity
38dBm (in 600W)
` Ring or Line Reversal detector
` On-hook and off-hook applications according to
Bellcore GR-30-CORE and SR-TSV-002476
` Compatible with ETSI standards ETS 300 659-1
and ETS 300 659-2
Tone Generators
` Dual tone generator with gain controller
` FSK tone sequence generator with 1200bps
` 3 Octave melody generator
Power-Down Modes
` Main Idle Mode (only CPU clock stops)
` Sub Idle Mode (only CPU clock stops)
` Stop Mode (main or sub oscillation stops)
Oscillation Sources
` Crystal for main clock (fx)
` Crystal for sub clock (fxt: 32.768kHz)
` PLL for 7.159090Mhz
` PLL for generating fx (3.579545MHz) from fxt
Operating Temperature Range
` 0°C to + 70°C
Operating Voltage Range
` 2.7 V to 5.5 V

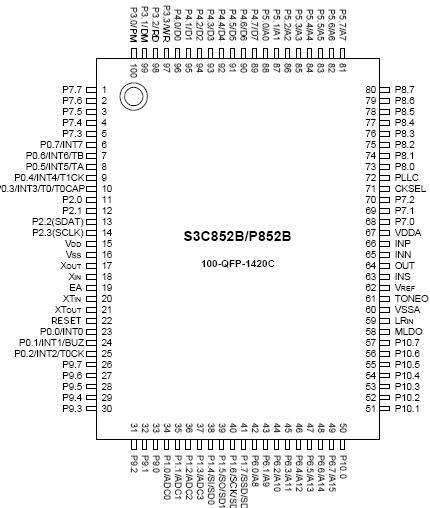

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Rating	Unit
Supply voltage	VDD	-	0.3 to + 7.0	V
Input voltage	VIN	Ports 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10	0.3 to VDD + 0.3	V
Output voltage	VO	All output pins	0.3 to VDD + 0.3	V
Output current High	IOH	One I/O pin active	18	mA
Output current High	IOH	All I/O pins active	60	mA
Output current Low	IOL	One I/O pin active	+ 30	mA
		Total pin current for ports 0, 1, and 310	+ 100
		Total pin current for port 2	+ 40
Operating temperature	TA	-	0 to + 70	°C
Storage temperature	TSTG	-	10 to + 100	°C

Description

The S3C852B is a low power CMOS 8-bit micro controller, which has a micro control unit (MCU), Caller ID on Call Waiting (CIDCW) receiver, tone generator, etc. The S3C852B single-chip microcontroller is fabricated using a highly advanced CMOS process. Its design is based on the powerful SAM87RC CPU core. Stop and Idle power-down modes were implemented to reduce power consumption. The S3C852B is used for receiving physical layer signals like Bellcore's CPE Alerting Signal (CAS) and similar evolving systems and also meets the requirements of emerging Caller ID on Call Waiting (CIDCW) services. In addition, two different signal inputs are available to support Tip/Ring and Hybrid connectivity. The S3C852B also includes a 1200 baud Bell 202/V.23 compatible FSK data demodulator, a ring or line reversal detector, a Stutter Dial Tone detector and a tone generator. Tone generator is capable of generating FSK signal and dual tone signals such as CAS, DTMF to support various applications such as short messaging service (SMS). The size of the internal register file is logically expanded, increasing the addressable on-chip register space to 1808 bytes. A flexible yet sophisticated external interface is used to access up to 64-Kbytes of program and data memory. The S3C852B is a versatile microcontroller that is ideal for use in a wide range of following applications.
