S3FB42F

Features: CPU· 8-Bit CalmRISC Core· DSP Architecture (24 x 24-bit MAC)Memory· Code memory: 144K byte (72K word) half flash type memory· Data memory: 48K byte SRAM + 69K byte flash type memorySTACK· Size: maximum 16 (word)-level.65 I/O Pins· I/O: 59 pins· Input only: 6 pins8-Bit Serial I/O Interfac...

product image

S3FB42F Picture
See larger image
SeekIC No. : 004482237 Detail

S3FB42F: Features: CPU· 8-Bit CalmRISC Core· DSP Architecture (24 x 24-bit MAC)Memory· Code memory: 144K byte (72K word) half flash type memory· Data memory: 48K byte SRAM + 69K byte flash type memorySTACK· ...

S3FB42F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3FB42F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
· 8-Bit CalmRISC Core
· DSP Architecture (24 x 24-bit MAC)

Memory
· Code memory: 144K byte (72K word) half flash type memory
· Data memory: 48K byte SRAM + 69K byte flash type memory

STACK
· Size: maximum 16 (word)-level.

65 I/O Pins
· I/O: 59 pins
· Input only: 6 pins

8-Bit Serial I/O Interface
· 8-bit transmit/receive or 8-bit receive mode.
· LSB first or MSB first transmission selectable.
· Internal and external clock source.
·  8-Bit Basic Timer & Watchdog timer
· Programmable basic timer 8-bit counter + WDT

3-bit counter
· 8 kinds of clock source
· Overflow signal of 8-bit counter makes a basic timer interrupt. And control the oscillation
    warm-up time
· Overflow signal of 3-bit counter makes a system reset.

One 16-Bit Timer/Counter
· Programmable interval timer
· Two 8-bit timer counter mode and one 16-bit timer counter mode, selectable by S/W

One Real Time Clock
· Real time clock generation (0.5 or 1 second)
· Buzzer signal generation (1, 2, 4 or 8 kHz)

ROM Code Options
· Basic timer counter clock source selecting reset value

I2C, I2S Interface
· One-Ch Multi-Master I2C controller
· Two-Ch Sony/Phillips I2S controller

UART Interface
· One Full-duplex UART controller

USB Specification Compliance (Ver1.0, Ver1.1)
· Built in Full Speed Transceiver
· Support 1 device address and 4 endpoints.
· 1 control endpoint and 3 data endpoints
· One 16 bytes endpoint, one 32 bytes end point, and two 64 bytes end points.
· Each data endpoint can be configurable as interrupt, bulk and isochronous.

Parallel Port Interface Controller
· Interrupt-based operation
· Support IEEE Standard 1284 communication mode (compatibility, nibble, byte and ECP mode).
· Automatic handshaking mode for any forward or reverse protocol with software enable/disable

SSFDC (Smart MediaTM card) Interface
· Control signals are operated by CPU instruction

Random Number Generator
· Two ring oscillators
·  Linear feedback shifter register LFSR8/LFSR16

External Interrupt
· 8 source (Edge triggered 6 + Level triggered 2)

ADC
· Six 8-bit resolution channels and normal input

Two Power-down Modes
· Idle mode: only CPU clock stop.
· Stop mode: system clock and CPU clock stop.

Oscillation Sources
· Clock synthesizer (Phase-locked loop circuit) based on 32.768 kHz
· CPU clock divider circuit (Div by 1, 2, 4, 8, 16, 32, 64, 128)

Instruction Execution Times
· 33.3ns at fxx = 30 MHz when 1 cycle instruction
· 66.6ns at fxx = 30 MHz when 2 cycle instruction

Operating Temperature
· - 40 °C to 85°C

Operating Voltage Range
· 3.0 V to 3.6 V at 30 MHz

Package Types
· 100-QFP, 100-TQFP

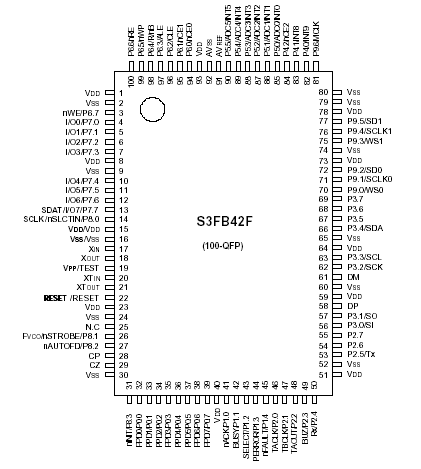

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 4.5
V
Input voltage
VI
-
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
 One I/O pin active
-15
mA
All I/O pins active
-100
Output current low
IOL
 One I/O pin active
+ 20
mA
Total pin current for ports 1, 2, 3
+150
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150





Description

The S3FB42F single-chip CMOS microcontroller is designed for high performance using Samsung's newest 8-bit CPU core, CalmRISC.

S3FB42F is an 8-bit low power RISC microcontroller. Its basic architecture follows Harvard style, that is, S3FB42F has separate program memory and data memory. Both instruction and data can be fetched simultaneously without causing a stall, using separate paths for memory access. Represented below is the top block diagram of the CalmRISC microcontroller.
