Product Details

Description



Features:

CPU
` CalmRISC core (8-bit RISC architecture)

Memory
` ROM: 8K-word (16K-byte)
` RAM: 1024-byte (excluding LCD data RAM)

Stack
` Size: maximum 16 word-level

39 I/O Pins
` 39 configurable I/O pins

Basic Timer
` Overflow signal makes a system reset
` Watchdog function

16-bit Timer/Counter 0
` Programmable 16-bit timer
` Interval, capture, PWM mode
` Match/capture, overflow interrupt

16-bit Timer/Counter 1
` Programmable 16-bit timer
` Match interrupt generator

8-bit Timer/Counter 2
` Programmable 8-bit timer
` Interval, capture, PWM mode
` Match/capture, overflow interrupt

8-bit Timer/Counter 3
` Programmable 8-bit timer
` Match interrupt/carrier frequency generator

Watch Timer
` Real-time and interval time measurement
` Clock generation for LCD
` Four frequency outputs for buzzer sound (0.5/1/2/4 kHz at 32.768 kHz)

LCD Controller/Driver
` 30 segments and 4 common terminals
` Static, 1/2 duty, 1/3 duty, 1/4 duty

Voltage Regulator and Booster
` LCD display voltage supply
` Capacitor/Resistor bias selectable
` 3.0 V drive

Battery Level Detector
` Programmable detection voltage (2.4 V, 3.0 V, 4.0 V)

8-Bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive mode
` LSB-first/MSB-first transmission selectable
` Internal/external clock source

A/D Converter
` Eight analog input channels
` 25 ms conversion speed at 8 MHz
` 10-bit conversion resolution
` Operating voltage: 2.7 V to 5.5 V

D/A Converter
` One analog output channel
` 9-bit conversion resolution (R-2R)
` Operating voltage: 2.7 V to 5.5 V

Oscillation Sources
` Crystal, ceramic, RC for main clock
` Crystal for sub clock
` Main clock frequency 0.48 MHz
` Sub clock frequency: 32.768 kHz
` CPU clock divider circuit (divided by 1, 2, 4, 8, 16, 32, 64 or 128)

Two Power-Down Modes
` Idle (only CPU clock stops)
` Stop (System clock stops)

Interrupts
` 2 Vectors, 13 interrupts

Instruction Execution Times
` 125 ns at 8 MHz (main clock)
` 30.5 ms at 32.768 kHz (sub clock)

Operating Temperature Range
` - 25 to 85

Operating Voltage Range
` 2.0 V to 5.5 V at 2 MHz (2MIPS)
` 2.4 V to 5.5 V at 4 MHz (4MIPS)
` 3.0 V to 5.5 V at 8 MHz (8MIPS)

Two Amplifiers
` Microphone and filter

8 * 8 Multiplication
` Signed by signed, unsigned by unsigned

Package Type
` 80-pin QFP-1420


Pinout

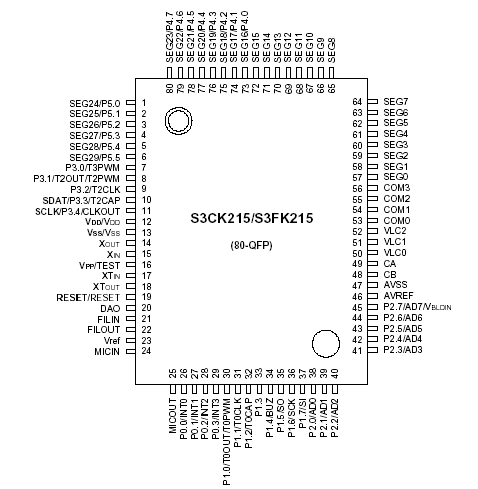

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
-
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
60
Output current low
IOL
One I/O pin active
+ 30
mA
Total pin current for port
+ 100
Operating temperature
TA
-
25 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3CK215/S3FK215 single-chip CMOS microcontroller is designed for high performance using Samsung's new 8-bit CPU core, CalmRISC.
S3FK215 is an 8-bit low power RISC microcontroller. S3FK215's basic architecture follows Harvard style, that is, it has separate program memory and data memory. Both instruction and data can be fetched simultaneously without causing a stall, using separate paths for memory access. Represented below is the top block diagram of the CalmRISC microcontroller.
