S3P70F4

Features: Memory` 512*4-bit data memory (RAM)` 2048 * 8-bit program memory (ROM):S3C70F2 4096 * 8-bit program memory (ROM):S3C70F424 I/O Pins` I/O: 18 pins, including 8 high current pins` Input only: 6 pinsComparator` 4-channel mode: Internal reference (4-bit resolution) 16-step variable reference...

product image

S3P70F4 Picture
See larger image
SeekIC No. : 004482246 Detail

S3P70F4: Features: Memory` 512*4-bit data memory (RAM)` 2048 * 8-bit program memory (ROM):S3C70F2 4096 * 8-bit program memory (ROM):S3C70F424 I/O Pins` I/O: 18 pins, including 8 high current pins` Input only...

S3P70F4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P70F4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 512*4-bit data memory (RAM)
` 2048 * 8-bit program memory (ROM):S3C70F2
    4096 * 8-bit program memory (ROM):S3C70F4

24 I/O Pins
` I/O: 18 pins, including 8 high current pins
` Input only: 6 pins

Comparator
` 4-channel mode: Internal reference (4-bit resolution) 16-step variable reference voltage
` 3-channel mode: External reference 150 mV resolution (worst case)

8-bit Basic Timer
` Programmable interval timer
` Watch-dog timer

8-bit Timer/Counter 0
` Programmable interval timer
` External event counter function Timer/counter clock output to TCLO0 pin

Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 4.19 MHz
` 4 frequency outputs to BUZ pin

8-bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive-only mode
` LSB-first or MSB-first transmission selectable
` Internal or external clock source

Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format

Interrupts
` Two external interrupt vectors
` Three internal interrupt vectors
` Two quasi-interrupts

Memory-Mapped I/O Structure
` Data memory bank 15

Two Power-Down Modes
` Idle mode: Only CPU clock stops
` Stop mode: System clock stops

OSCILLATION SOURCES
` Crystal, Ceramic for system clock
` Crystal/ceramic: 0.4 - 6.0 MHz
` CPU clock divider circuit (by 4. 8, or 64)

Instruction Execution Times
` 0.95, 1.91, 15.3 µs at 4.19 MHz
` 0.67, 1.33, 10.7 µs at 6.0 MHz

Operating Temperature
` 40 to 85

Operating Voltage Range
` 1.8 V to 5.5 V

Package Type
` 30 SDIP, 32 SOP


Pinout

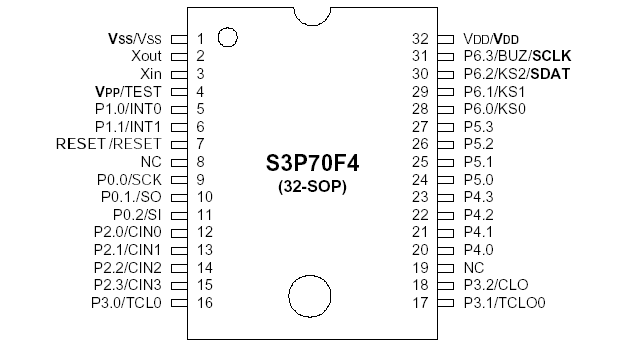

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
-5
mA
All I/O ports active
15
Output current low
IOL
Ports 0, 3, and 6
5
mA
Ports 4 and 5
30
All ports, total
+100
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150



Description

The S3C70F2/C70F4/S3P70F4 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

The S3P70F4 is the microcontroller which has 4 Kbyte one-time-programmable ROM and the functions are the same to S3C70F2/C70F4/S3P70F4. With a four-channel comparator, eight LED direct drive pins, serial I/O interface, and its versatile 8-bit timer/counter, the S3C70F2/C70F4 offers an excellent design solution for a wide variety of general-purpose applications.

Up to 24 pins of the 30-pin SDIP package can be dedicated to I/O. Five vectored interrupts provide fast response to internal and external events. In addition, the S3C70F2/C70F4/S3P70F4's advanced CMOS technology provides for very low power consumption and a wide operating voltage range - all at a very low cost.
