Product Details

Description



Features:

• Output for continuous pulse, toggle pulse and single pulse are provided (Toggle pulse is available only for S5G9803X01)
• A single terminal type oscillator by means of RC is provided
• Containing custom code detection circuit for code check with the transmitter (To prevent interferences with other models)
• Able to output in parallel method multiple keying signals sent from transmitter.
   The S5G9801X01 can output up to 5 functions, and the S5G9803X01 can output up to 6 functions in parallel method.


Pinout

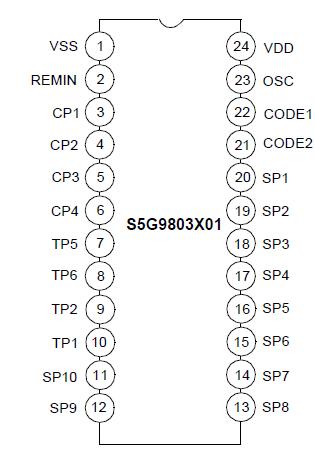

  Connection Diagram


Specifications


Characteristics
Symbols
Value.
Unit
Supply Voltage
VDD
0 - 6
V
Input/Output Voltage
VIN VOUT
VSS -0.3 - VDD + 0.3
V
Power Dissipation
PD
200
mW
Operating Temperature
TOPR
-20 - 75
Storage temperature
TSTG
-55 - 125




Description

The S5G9801X01 and S5G9803X01 are CMOS integrated circuits for the infrared ray remote receiver, used with the S5G9802, which can be applied to TV, VCR, VDP, CDP and AV controller.

The S5G9803X01 is a 16-DIP type and is able to control 10 functions.

The S5G9803X01 is a 24-DIP type and is able to control 18 functions.
