Purchase S5L9290X, In-stock S5L9290X From SeekIC.
MFG:Samsung D/C:07+
Part Number: S5L9290X
MFG: Samsung
D/C: 07+
Description: S5L9290X is a signal processing LSI for the CD. Digital processing function (EFM demodulation, error c...
- Table of contents:
S5L9290X
-
Suppliers
DataSheet
General Description
S5L9290X General Description
S5L9290X is a signal processing LSI for the CD. Digital processing function (EFM demodulation, error correction), spindle motor servo processing, wide capture range DPLL and 1-bit DAC for the CD player are installed in S5L9290X
S5L9290X Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
| Power supply voltage |
VDD |
3V: -0.3 - 3.8 5V: -0.3 - 7.0 |
V |
| Input supply voltage |
VI |
3V I/O: -0.3 - VDD + 0.3 5V I/O: -0.3 -5.5 |
V |
| Operating temperature |
TOPR |
-20- 75 |
|
| Storage temperature |
TSTG |
-40- 125 |
S5L9290X Features
• Signal processing part
- EFM data demodulation
- Frame sync detection, protection, insertion
- Sub code data processing (Q data CRC check, Q data register installed)
- Error correction (C1: 2 error correction, C2: 4 erasure correction)
- Installed 16K SRAM for De-interleave
- Interpolation
- Digital audio interface
- CLV servo control (X1, X2)
- Wide capture range digital PLL ( ± 50%)
• Digital filter, DAC part
- 4 times over sampling digital filter
- Digital de-emphasis (can be process the 32kHz, 44.1kHz, 48kHz)
- Sigma-delta stereo DAC installed
- Audio L.P.F installed
- EFM data demodulation
- Frame sync detection, protection, insertion
- Sub code data processing (Q data CRC check, Q data register installed)
- Error correction (C1: 2 error correction, C2: 4 erasure correction)
- Installed 16K SRAM for De-interleave
- Interpolation
- Digital audio interface
- CLV servo control (X1, X2)
- Wide capture range digital PLL ( ± 50%)
• Digital filter, DAC part
- 4 times over sampling digital filter
- Digital de-emphasis (can be process the 32kHz, 44.1kHz, 48kHz)
- Sigma-delta stereo DAC installed
- Audio L.P.F installed

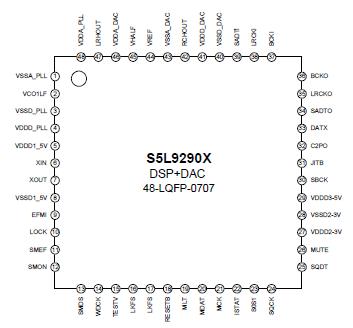

S5L9290X Connection Diagram
S5L9290X
