Product Details

Description



Features:

· Full Compliance with T1.413 Issue-2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite).
· FDM and EC-based DMT Line Coding
· Data Rate: over 8Mbps for Downstream and 640 Kbps for Upstream.
· Reach: 6.7 Km (22Kft) with 24 AWG and 5.5 Km (18 Kft) with 26 AWG
· Supports Rate Adaptive Mode (steps of 32kbps)
· Reed-Solomon Forward Error Correction with(or without) Interleaver
· Adaptive Frequency and Time Domain Equalizer.
· Trellis Coding and Echo Cancellation.
· Supports Normal or Reduced Overhead Framing Modes
· Supports Analog and Digital PLL.
· Compatible to PCI V2.2
· Handle ATM Cells (On-Chip SAR and Connection Memory)
· Supports Fast Retraining Function in G.lite Mode
· Supports Network Management Function
· Supports Power Management Function
· 0.18mm, 1.8V CMOS Technology
· Operating Temperature: -40 °C to 85 °C
· Package Type: 208-LQFP

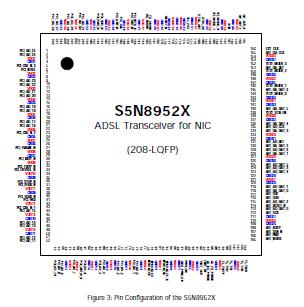

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Rating
Unit
ILATCH Latch-up Current
±200
mA
TSTG Storage Temperature
-65 to 150





Description

The S5N8952X is a complete ATM-based ADSL modem solution with associated F/W and an Analog Front-End (S5N8951). The S5N8952X provides all the digital functions such as PCI I/F, SAR, ATM framing, channel codec, DMT modulation, and DSP control.

There are two interfaces for external communications; PCI bus interface for NIC applications and AD/DA interface. The S5N8952X is optimized for providing NIC solution for CPE, and uses 17.664MHz Xtal oscillator as a master clock.
