S5T8701

Features: · FLEXTM paging protocol decoder· 16 programmable user address words· 16 fixed temporary addresses· 16 operator messaging addresses· 1600,3200,and 6400bps(bits per second) decoding· Any-phase or single-phase decoding· Uses standard Serial Peripheral Interface (SPI) in slave mode· Allow l...

product image

S5T8701 Picture
See larger image
SeekIC No. : 004482717 Detail

S5T8701: Features: · FLEXTM paging protocol decoder· 16 programmable user address words· 16 fixed temporary addresses· 16 operator messaging addresses· 1600,3200,and 6400bps(bits per second) decoding· Any-ph...

S5T8701 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5T8701
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· FLEXTM paging protocol decoder
· 16 programmable user address words
· 16 fixed temporary addresses
· 16 operator messaging addresses
· 1600,3200,and 6400bps(bits per second) decoding
· Any-phase or single-phase decoding
· Uses standard Serial Peripheral Interface (SPI) in slave mode
· Allow low current STOP mode operation of host processor
· Highly programmable receiver control
· Real time clock time base
· FLEX fragmentation and group messaging support
· Real time clock over-the-air update support
· Compatible with synthesized receivers
· SSID and NID Roaming support
· Low Battery Indication(External detector)
· 28 used pins (32-pin package standard)
· Backward compatible to the standard and roaming FLEX decoder ICs
· Internal demodulator and data slicer
· Improved battery savings via partial correlation and intermittent receiver clock
· Full support for revision 1.9 of the FLEX protocol
· 32-pin LQFP package
· Supply voltage: 1.8 to 3.6V
· Operating Frequency: 76.8kHz or 160kHz


Pinout

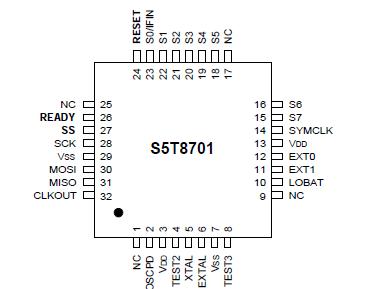

Connection Diagram


Specifications

Characteristic
Symbol
Min
Max
Unit
DC Supply Voltage
VDD
-0.3
3.8
V
DC Input Voltage
VIN
-0.3
VDD + 0.3
V
DC Input Current
IIN
-10
+10
mA
Storage Temperature
TSTG
-40
+125
Operating Temperature
TOPR
-25
+85

Absolute Maximum Ratings may cause critical device failure by above table beyond limits.
All electrical characteristics are applied in digital cell library without analog core.


Description

This FLEXTM Roaming Decoder II date sheet describes the operation of the S5T8701.

The S5T8701 simplifies implementation of a FLEXTM paging device by interfacing with any of several off-the-shelf paging receivers and any of several off-the-shelf host microcontroller/microprocessors. Its primary function is to process information received and demodulated from a FLEX radio paging channel, select messages addressed to the paging device and communicate the message information to the host. The S5T8701 also operates the paging receiver in an efficient power consumption mode and enables the host to operate in a low power mode when monitoring a signal channel for message information.
