S6A0035

Features: · Maximum 53 segment output for STATIC display· Drive system:1/1 duty ® 53 segments 1/2 duty ® 104 segments· 3-input pins for serial data transfer (CE, CK, DI )· 2-pin for 5-level AD converter (ARI, ALI)· 2 display pins for direct displaying (DSP1, DSP2 )· INH pin for blinking ou...

product image

S6A0035 Picture
See larger image
SeekIC No. : 004482776 Detail

S6A0035: Features: · Maximum 53 segment output for STATIC display· Drive system:1/1 duty ® 53 segments 1/2 duty ® 104 segments· 3-input pins for serial data transfer (CE, CK, DI )· 2-pin for 5-level ...

S6A0035 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S6A0035
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Maximum 53 segment output for STATIC display
· Drive system:1/1 duty ® 53 segments
  1/2 duty ® 104 segments
· 3-input pins for serial data transfer (CE, CK, DI )
· 2-pin for 5-level AD converter (ARI, ALI)
· 2 display pins for direct displaying (DSP1, DSP2 )
· INH pin for blinking out display


Pinout

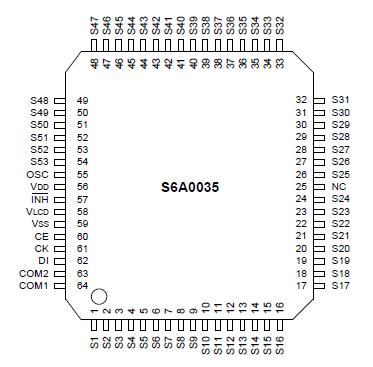

Connection Diagram


Specifications

Characteristics
Symbol
Value
Applicable pin
Unit
Maximum Supply Voltage
VDD max
-0.3 to +7.0
VDD
V
VLCD max
-0.3 to VDD+ 0.3
VLCD
V
Input Voltage
VIN1
-0.3 to VDD+ 0.3
CE, CK, DI, INH
V
VIN2
-0.3 to VDD+ 0.3
S44 ~ S47
Output off (Used as ARI, ALI
DSP1, DSP2)
V
VIN3
-0.3 to VDD+ 0.3
OSC, output off
V
Output Voltage
VO
-0.3 to VDD+ 0.3
OSC, output off
V
Output Current
IO1
100
S1 ~ S53
A
IO2
0.1
COM1, COM2
mA
Allowable Power Dissipation
PD max
100
Ta = 85°C
mW
Operating Temperature
TOPR
-30 to +85
-
Storage temperature
TSTG
-40 to +125
-



Description

The S6A0035 is a general purpose LCD driving IC, and designed to be available for electronic frequency tuning display applications or microcomputer application systems.
