S6B33B0A

Features: `Driver Output - 144 RGB x 177`Gray Scale Function - 65,536 color display of R: 32 gray scale, G: 64 gray scale, B: 32 gray scale - 4,096 color display of R: 16 gray scale, G: 16 gray scale, B: 16 gray scale - 256 color display of R: 8 gray scale, G: 8 gray scale, B: 4 gray scale`On-chip...

product image

S6B33B0A Picture
See larger image
SeekIC No. : 004482818 Detail

S6B33B0A: Features: `Driver Output - 144 RGB x 177`Gray Scale Function - 65,536 color display of R: 32 gray scale, G: 64 gray scale, B: 32 gray scale - 4,096 color display of R: 16 gray scale, G: 16 gray scal...

S6B33B0A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S6B33B0A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Driver Output
   -  144 RGB x 177
`Gray Scale Function
   -  65,536 color display of R: 32 gray scale, G: 64 gray scale, B: 32 gray scale
   -  4,096 color display of R: 16 gray scale, G: 16 gray scale, B: 16 gray scale
   -  256 color display of R: 8 gray scale, G: 8 gray scale, B: 4 gray scale
`On-chip Display Data RAM
   -  Capacity: 144 x 16 x 176 = 405.504k bits
   -  Burst RAM write function
`Display Mode
   -  Normal display mode: Entire duty displaying
   -  Partial display mode: Partial duty displaying
   -  Standby mode: Internal display clocks off
   - Area scroll mode: Particular area scrolling
`Microprocessor Interface
   -  8-bit/16 bit parallel bi-directional interface with 6800-series or 8080-series
   -  3/4 Pin SPI (only write operation)
`On-chip Low Power Analog Circuit
   -  On-chip CR oscillator (Internal cap. & external resistor), external clock available
   -  Voltage converter / Voltage regulator / Voltage follower
   -  On-chip electronic contrast control (256 steps)
`Operating Voltage Range
   -  VDD : 1.8 to 3.3 [V] (without Internal Regulator), 2.4 to 3.3 [V] (With internal Regulator)
   -  VIN1: 2.4 to 3.6 [V]
   -  Display operating voltage(V1): 2.0 to 4.0 V
   -  LCD Operating Voltage Range : Max. 20 V
`Low Power Consumption
   - 650 A Typ. (Refer to DC CHARACTERISTICS (2))
`Package Type
   -  COG (Output Pad Pitch Min. 40 mm)


Pinout

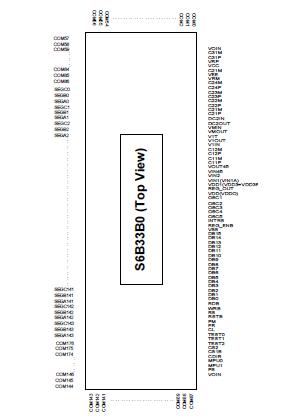

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply voltage range
VDD3
-0.3 to +4.0
V
LCD Supply Voltage range
|VCC VEE|
22
V
Input Voltage range
Vin
- 0.3 to VDD +0.3
V
Operating temperature range
TOPR
-30 to +70
Storage temperature range
TSTR
-55 to +150




Description

S6B33B0A is a mid-display-size-compatible driver for liquid crystal dot matrix gray-scale graphic systems. With onchip CR oscillator circuit, the display-timing signal is generated without being sent from MPU. Also, it is capable of using 8bit/16bit data bus alternatively and operating with 68/80-series MPU in asynchronous. Due to the LCD driving signal (144 RGB X 177 output) corresponding to the display data and the internal bit-map display RAM of 144X176 X16-bit, S6B33B0A is capable of operating max. 144 RGB x 177 dot LCD panels in low-power consumption. Being the segment RGB 3-output, one pixel is 16-bit data and S6B33B0A can max display 65,536 color.
