S7AH-08B1A0R

CONV DC/DC 8A 0.9-3.3V OUT SMD

product image

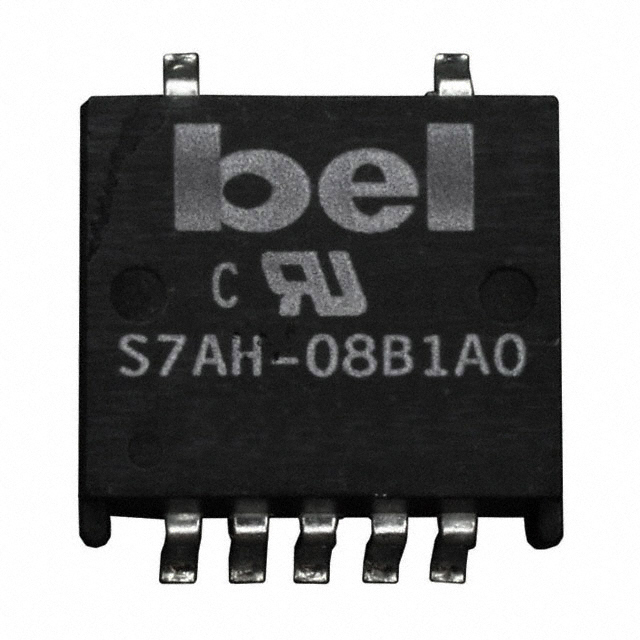

S7AH-08B1A0R Picture
See larger image
SeekIC No. : 003654283 Detail

S7AH-08B1A0R: CONV DC/DC 8A 0.9-3.3V OUT SMD

S7AH-08B1A0R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S7AH-08B1A0R
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: x7AH-08B Manufacturer: Bel Fuse Inc
Type: Non-Isolated (POL) Number of Outputs: 1
Voltage - Input (Min): 4.5V Voltage - Input (Max): 5.5V
Voltage - Output 1: 0.9 ~ 3.3 V Voltage - Output 2: -
Voltage - Output 3: - Current - Output (Max): 8A
Power (Watts) - Manufacture Series: 26W Voltage - Isolation: -
Features: With Remote On/Off and UVLO Mounting Type: Surface Mount
Package / Case: 7-DIP SMD Module Package / Case : TCSP-48
Size / Dimension: 0.70" L x 0.65" W x 0.32" H (17.8mm x 16.5mm x 8.1mm) Packaging: Cut Tape (CT)
Operating Temperature: -40°C ~ 85°C

Description

Number of Outputs: 1
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 5.5V
Voltage - Output 2: -
Voltage - Output 3: -
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Type: Non-Isolated (POL)
Voltage - Isolation: -
Efficiency: 92%
Package / Case: 7-DIP SMD Module
Features: With Remote On/Off and UVLO
Manufacturer: Bel Fuse Inc
Current - Output (Max): 8A
Voltage - Output 1: 0.9 ~ 3.3 V
Packaging: Cut Tape (CT)
Power (Watts) - Manufacture Series: 26W
Size / Dimension: 0.70" L x 0.65" W x 0.32" H (17.8mm x 16.5mm x 8.1mm)
Series: x7AH-08B


Parameters:

Technical/Catalog InformationS7AH-08B1A0R
VendorBel Fuse Inc (VA)
CategoryPower Supplies
Voltage - Input4.5 ~ 5.5VDC
Output0.9-3.3V
Power (Watts)26.4W
Number of Outputs1
1st Output0.9 ~ 3.3 VDC @ 8A
2nd Output-
3rd Output-
4th Output-
TypeNon-Isolated
Mounting TypeSurface Mount
PackagingCut Tape (CT)
Package / Case7-SMD
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names S7AH 08B1A0R
S7AH08B1A0R
507 1131 1 ND
50711311ND
507-1131-1
