Features:

• Non-Isolated
• Remote On/Off (Active High Logic)
• Fixed frequency (300kHz)
• Input Under-voltage Lockout (UVLO)
• Low profile package (8.5mm)
• OCP/SCP
• Remote Sense
• Wide Trim Output

Pinout

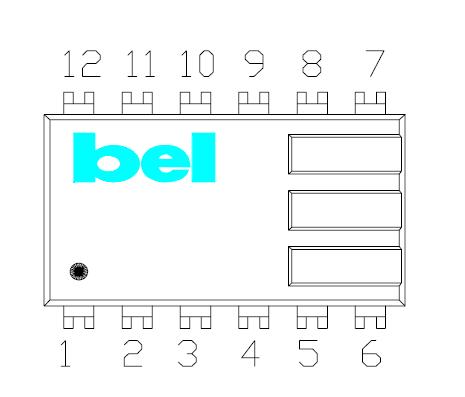

Connection Diagram

Specifications

Parameter	Min	Typical	Max	Notes
Continuous Input Voltage	-0.3V		7V
Output Enable Terminal Voltage	-0.3V		3.9V
Ambient Temperature	-40°C		85°C
Storage Temperature	-55°C		100°C

Description

The S7DB-12C1AH is part of the low cost non-isolated DC/DC power converter series. The S7DB-12C1AH module uses a DIP package for ease of layout and space savings, with a low profile of 8.5mm. The output is widely trimmed from 0.9V to 2.5V, and the efficiency of 2.5V output module is typically 92% at full load. Features include remote sense, remote on/off, short circuit protection, over current protection and input under-voltage lockout.
