S9318

Features: • Digitally Controlled Electronic Potentiometer• 8-Bit Digital-to-Analog Converter (DAC) Independent Reference Inputs Differential Non-Linearity - ±0.5LSB max Integral Non-Linearity - ±1LSB max• VOUT Value in E2PROM for Power-On Recall Equivalent to 256-Step Potenti...

product image

S9318 Picture
See larger image
SeekIC No. : 004483442 Detail

S9318: Features: • Digitally Controlled Electronic Potentiometer• 8-Bit Digital-to-Analog Converter (DAC) Independent Reference Inputs Differential Non-Linearity - ±0.5LSB max Integral Non-L...

S9318 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S9318
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Digitally Controlled Electronic Potentiometer
• 8-Bit Digital-to-Analog Converter (DAC)
   Independent Reference Inputs
   Differential Non-Linearity - ±0.5LSB max
   Integral Non-Linearity - ±1LSB max
• VOUT Value in E2PROM for Power-On Recall
   Equivalent to 256-Step Potentiometer
• Unity Gain Op Amp Drives up to 1mA
• Simple Trimming Adjustment
   Up/Down Counter Style Operation
• Low Noise Operation
• "Clickless" Transitions between DAC Steps
• No Mechanical Wearout Problem
   1,000,000 Stores (typical)
   100 Year Data Retention
• Operation from +2.7V to +5.5V Supply
• Low Power, 1mW max at +5V


Pinout

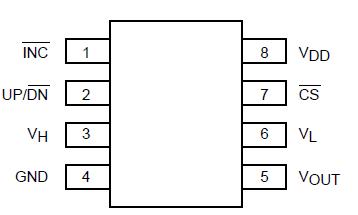

Connection Diagram


Specifications

Temperature Under Bias  ................... -55°C to +125°C
Storage Temperature..................... -65°C to +150°C
Voltage on pins with reference to GND:
Analog Inputs ..........................-0.5V to VDD+.5V
Digital Inputs .......................... -0.5V to VDD+.5V
Analog Outputs .........................-0.5V to VDD+.5V
Digital Outputs  .........................-0.5V to VDD+.5V
Lead Solder Temperature (10 secs) ....................300°C


Description

The S9318 DACPOT™ trimmer is an 8-bit nonvolatile DAC designed to replace mechanical potentiometers. The S9318 includes a unity-gain amplifier to buffer the DAC output and enables VOUT to swing from rail to rail. The DACPOT trimmer operates over a supply voltage range of 2.7V to 5.5V.

The S9318's simple up/down counter input provides an ideal interface for automatic test equipment to dither and monitor the VOUT voltage. This interface allows for quick and consistent calibration of even the most sophisticated systems. It is a pin-compatible performance upgrade for other industry nonvolatile potentiometers. The S9318 offers double the resolution of these devices and provides 'clickless' transitions of VOUT.
