S9418

Features: • Four 8-Bit DACS - Differential Non-linearity - ±0.5LSB max - Integral Non-Linearity Error - ±1LSB max• Each DAC has Independent Reference Inputs - Output Buffer Amplifiers Swing Rail-to-Rail - Ground to VDD Reference Input Range• Each DAC's Digital Inputs Maintained i...

product image

S9418 Picture
See larger image
SeekIC No. : 004483456 Detail

S9418: Features: • Four 8-Bit DACS - Differential Non-linearity - ±0.5LSB max - Integral Non-Linearity Error - ±1LSB max• Each DAC has Independent Reference Inputs - Output Buffer Amplifiers Sw...

S9418 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S9418
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four 8-Bit DACS
   - Differential Non-linearity - ±0.5LSB max
   - Integral Non-Linearity Error - ±1LSB max
• Each DAC has Independent Reference Inputs
   - Output Buffer Amplifiers Swing Rail-to-Rail
   - Ground to VDD Reference Input Range
• Each DAC's Digital Inputs Maintained in EEPROM
• Power-On Reset Reloads Registers with Nonvolatile Data
• Simple Serial Interface for Reading and Writing DAC values, SPI™ and QSPI™ compatible.
• Fully operational from 2.7V to 5.5V
• Low Power, 4mW max at +5V


Pinout

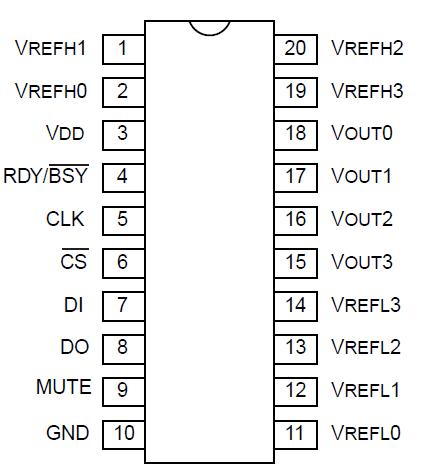

Connection Diagram


Specifications

VDD to GND  ....................... -0.5V to +7V
Digital Inputs to Gnd................ -0.5V to VDD+0.5V
Analog Inputs to ground ..............-0.5V to VDD+0.5V
Digital Outputs to Gnd ...............-0.5V to VDD+0.5V
Analog Outputs to Gnd ............... -0.5V to VDD+0.5V
Temperature Under Bias  ............. -55°C to +125°C
Storage Temperature............... -65°C to +150°C
Lead Soldering (10 Sec Max)  .................300°C


Description

The S9418 DACPOT™ is a serial input, voltage output, quad 8-bit digital to analog converter. The S9418 operates from a single +2.7V to +5.5V supply. Internal precision buffers swing rail-to-rail and the reference input range includes both ground and the positive supply.

The S9418 integrates four 8-bit DACs and their associated circuits which include; an enhanced unity gain operational amplifier output, an 8-bit data latch, an 8-bit nonvolatile register and an industry standard serial interface for reading and writing data to the DACs' data latches and registers. The DACs are independently programmable and each has its own electrically isolated Vreference inputs.
