SA12B5

Features: ·12-BIT (SA12) OR 16-BIT (SA16) DUAL SCHOTTKY DIODE ARRAYS·REVERSEVOLTAGE: VRRM = 7.5 V·FORWARD VOLTAGEVF < 1.3 VApplicationAny electronic equipment where suitable bus termination is required to avoid signal reflections and distortions :·PCs·Workstations·High frequencyprocessor boards...

product image

SA12B5 Picture
See larger image
SeekIC No. : 004483522 Detail

SA12B5: Features: ·12-BIT (SA12) OR 16-BIT (SA16) DUAL SCHOTTKY DIODE ARRAYS·REVERSEVOLTAGE: VRRM = 7.5 V·FORWARD VOLTAGEVF < 1.3 VApplicationAny electronic equipment where suitable bus termination is re...

SA12B5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA12B5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·12-BIT (SA12) OR 16-BIT (SA16) DUAL SCHOTTKY DIODE ARRAYS
·REVERSEVOLTAGE: VRRM = 7.5 V
·FORWARD VOLTAGEVF < 1.3 V


Application

Any electronic equipment where suitable bus termination is required to avoid signal reflections and distortions :
·PCs
·Workstations
·High frequencyprocessor boards
·Dataline interface


Pinout

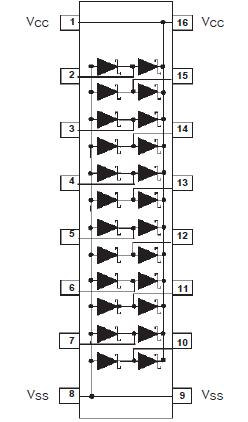

Connection Diagram


Specifications

Symbol
 Parameterand test conditions
Value
Unit
P
 Power dissipation SO-20
SO-16 and SSOP20
1250
850
mW
VOP
 Maximumoperating voltage (VCC - VSS)
7.5
V
VPP
 Maximumelectrostatic discharge
MIL STD 883C - Method3015-6 / IEC1000-4-2contact
8
KV
TOP
 Operatingtemperature range (see note 1)
-40 to +85
°C
Tstg
 Storage temperaturerange
-55 to +150
°C
TL
 Maximumlead temperature for soldering during 10s
260
°C
Tj
 Maximumjunction temperature
150
°C
Note1: withintheToprange, the SAxxkeepon operating.Theimpacts of theambient temperature are givenby derating curves on thefollowingpage.


Description

Dedicated to bus termination, the Schottky arrays SA12B5, SA16B3 and SA16B6 minimise stray emissions from PCB tracks. They provide suitable termination by avoiding signal reflexions and distortions.
