SA1316

Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• Low power consumption type chip LEDApplication• LCD backlighting• Keypad backlighting• Symbol backlighting• Front panel indic...

product image

SA1316 Picture
See larger image
SeekIC No. : 004483525 Detail

SA1316: Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• Low power consumption type chip LEDApplication...

SA1316 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA1316
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.6mm(L)×0.8mm small size surface mount type
• Thin package of 0.55mm(H) thickness
• Transparent clear lens optic
• Low power consumption type chip LED




Application

• LCD backlighting
• Keypad backlighting
• Symbol backlighting
• Front panel indicator lamp




Pinout

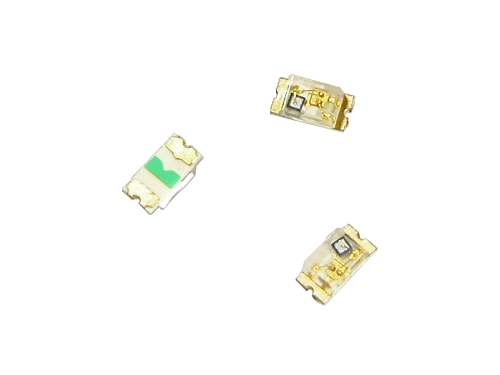

Connection Diagram




Specifications

Characteristic
Symbol
Ratings
Unit
Power Dissipation
PD
70
mW
Forward Current
IF
25
mA
(1)Peak Forward Current
IFP
50
mA
Reverse Voltage
VR
4
V
Operating Temperature
Topr
-20~80
°C
Storage Temperature
Tstg
-30~100
°C
(2)Soldering Temperature
(Reflow soldering)
Tsol
240°C for 3 seconds
(1). Duty ratio = 1/16, Pulse width = 0.1ms
(2). Recommended soldering Temperature Profile
2-1) Preheating 100°C to 150°C within 2 minutes Soldering 240°C within 5 seconds Gradual cooling (Avoid quenching)




Description

SA1316 are used, as a small size surface mounted type, for a key pad back light of mobile phone, and SA1316 also used in LCD backlight of Electric home appliances. Low power consumtion type chip LEDs are usefully applied for a wide range of backlight unit of Mobile parts, etcs.
