SA2005F

Features: · Functionally compatible with the SA9105F with reducedxternal components Performs bidirectional one, two or three phase power and nergy measurement· Meets the IEC 521/1036 Specification requirements forlass 1 AC Watt hour meters· Operates over a wide temperature range·Uses current trans...

product image

SA2005F Picture
See larger image
SeekIC No. : 004483554 Detail

SA2005F: Features: · Functionally compatible with the SA9105F with reducedxternal components Performs bidirectional one, two or three phase power and nergy measurement· Meets the IEC 521/1036 Specification r...

SA2005F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA2005F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Functionally compatible with the SA9105F with reduced xternal components Performs bidirectional one, two or three phase power and nergy measurement
· Meets the IEC 521/1036 Specification requirements for lass 1 AC Watt hour meters
· Operates over a wide temperature range
·Uses current transformers for current sensing
· Easily adaptable to different signal levels
· Precision voltage reference on chip
· Precision oscillator on chip.
· Protected against ESD

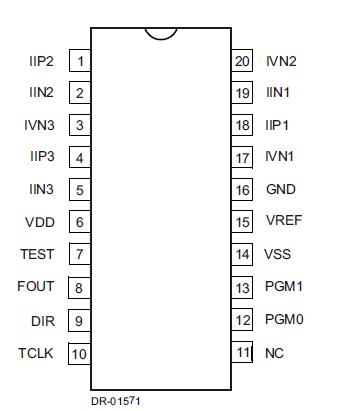

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Supply Voltage
VDD-VSS
-0.3
6.0
V
Current on any pin
IPIN
-150
+150
mA
Storage Temperature
TSTG
-40
+125
°C
Operating ambient
TO
-40
+85
°C
*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress
rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of
this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.


Description

The SAMES SA2005F is an enhancement of the SA9105F. A recision oscillator and the loop capacitors are integrated on hip.

The SAMES SA2005F three phase bidirectional power/energy etering integrated circuit generates pulse rate outputs for ositive and negative energy irections. The frequency of the ulses is proportional to the measured power consumption. he SA2005F performs active power calculation.

The method of calculation SA2005F takes the power factor into account. ergy consumption is determined by integrating the power easurement over time.

This innovate universal three phase power/energy metering ntegrated circuit is ideally suited for applications such as esidential and industrial energy metering and control. he SA2005F integrated circuit is available in 20 pin dual-inline lastic (DIP-20), and 20 pin small outline (SOIC-20) ackage types
