Product Details

Description



Features:

• VCC=3V5.5V
• No negative bias needed
• ICC=125mA (typ) @ 3.3V
• POUT=18.5 dB(typ)
   IM3<30dBc
   IM5<50dBc
• Gain=29dB (typ)
• Attenuation range=16dB (typ)
• LQFP32 package


Application

• 802.11 WLAN
• 2.42.5 GHz ISM BAND

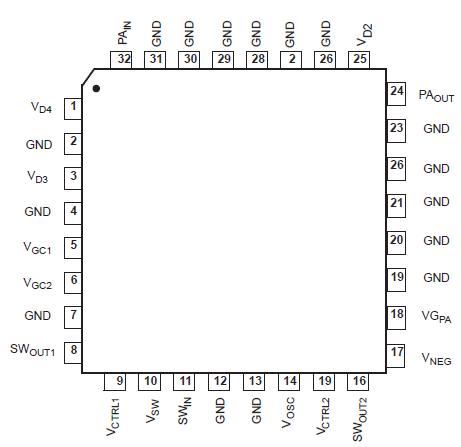

Pinout

Connection Diagram


Description

The SA2410 is a GaAs monolithic power amplifier with an integrated T/R switch designed to meet requirements for 802.11 (WLAN). The SA2410 uses an onchip 4 GHz oscillator to generate the negative bias, thus eliminating the need for a negative supply. It operates from 3V to 5.5V and consumes 125 mA with an output power of 18.5 dB (typ). It is suitable for other 2.45 GHz ISM band applications.
